Vacuum Brake Booster Check Valve: Service and Repair

CAUTION:
^ Do not apply any oil or lubricants to vacuum hose and check valve.

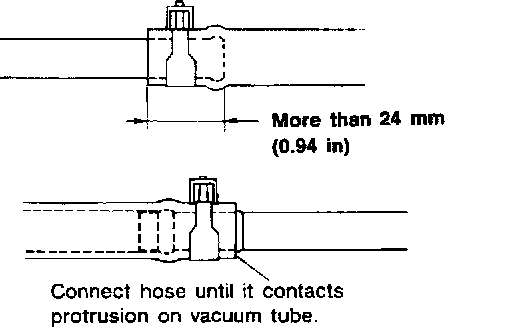

^ Insert vacuum tube into vacuum hose as shown.

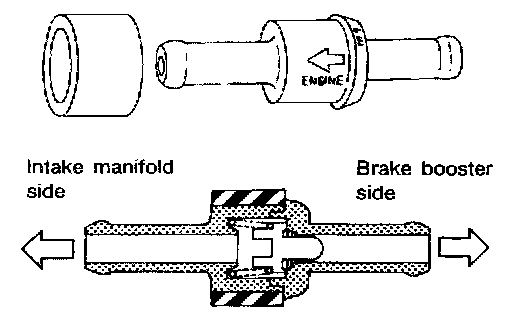

^ Install check valve, paying attention to its direction.
