Seals and Gaskets: Service and Repair

REMOVAL
1. Remove the propeller shaft.

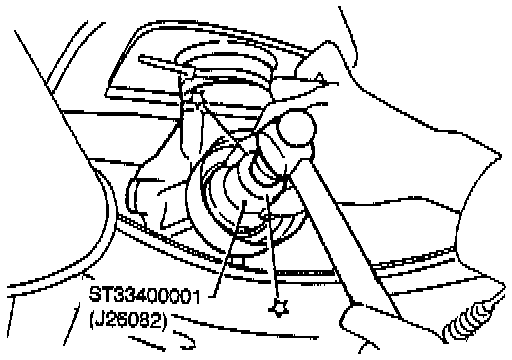

2. Remove rear oil seal using Tool.
- Always replace with a new seal once it has been removed.





INSTALLATION

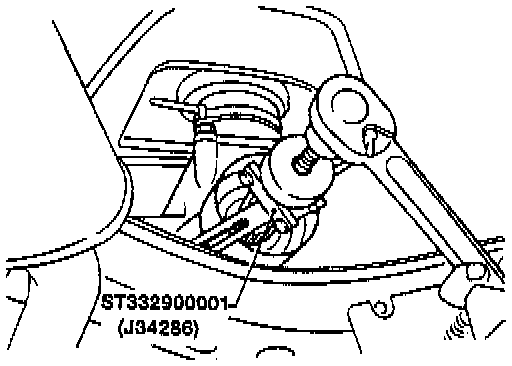

1. Install new oil seal until it stops.
- Apply multi-purpose grease to seal lip of oil seal before installing.
2. Install any part removed.
