Contact Surfaces

1. Clean the disassembled parts in suitable solvent and blow dry with compressed air.

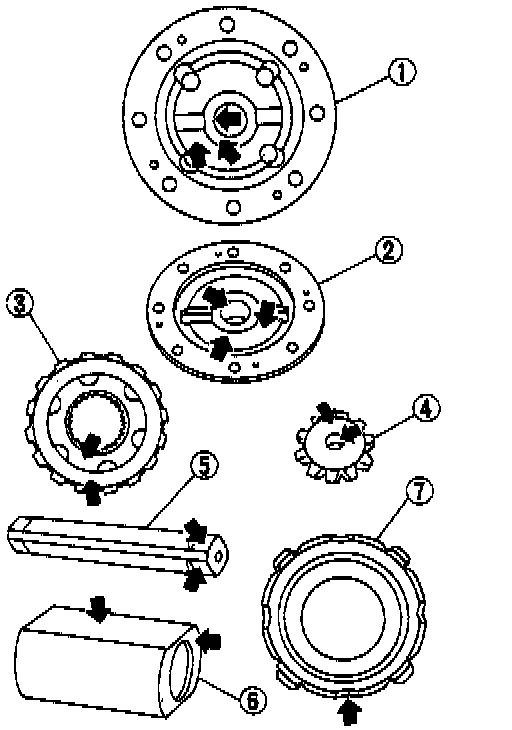

2. If the following surfaces are found with burrs or scratches, smooth with oil stone.
(1) Differential case A
(2) Differential case B
(3) Side gear
(4) Pinion mate gear
(5) Pinion mate shaft
(6) Thrust block
(7) Pressure ring
