Differential Carrier

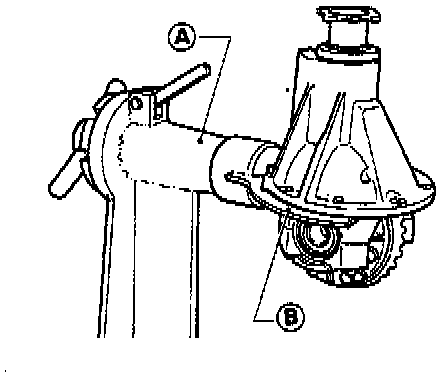

1. Mount differential carrier on Tool numbers:
(A) ST0501S000
(B) ST06310000 (J25602-01)

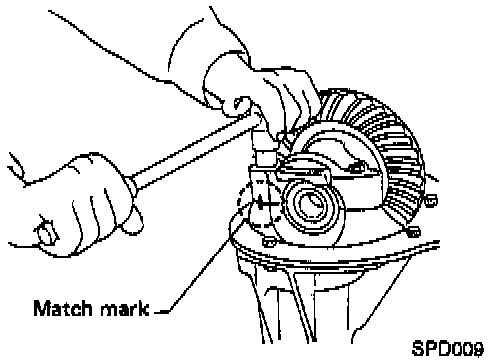

2. Put match marks on one side of side bearing cap with paint or punch to ensure that it is replaced in proper position during reassembly.
- Bearing caps are line-bored during manufacture and should be put back in their original places.





3. Remove side bearing caps.

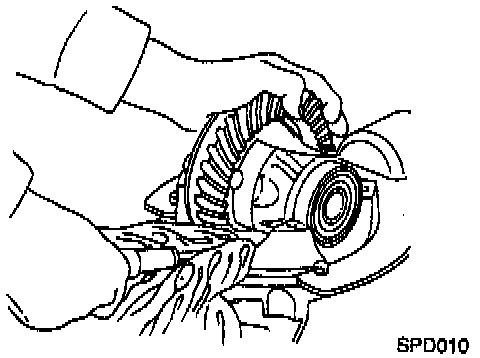

4. Remove differential case assembly with a pry bar.

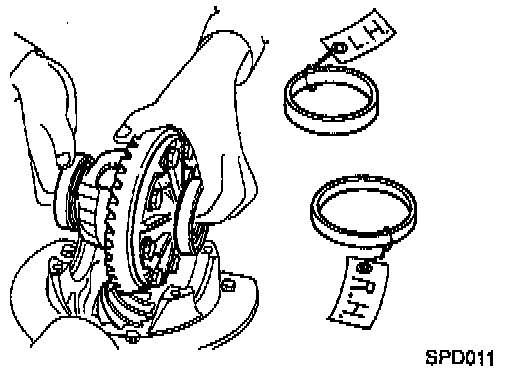

- Keep the side bearing outer races together with their respective inner cones-do not mix them up.

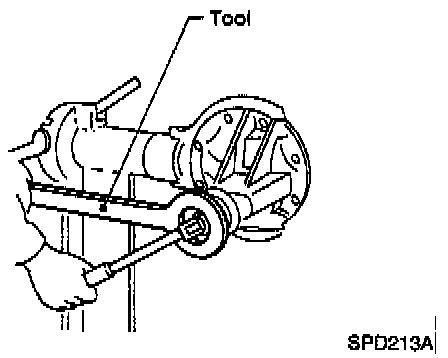

5. Remove drive pinion nut with Tool number ST38060002 (J34311).
6. Remove companion flange with puller.

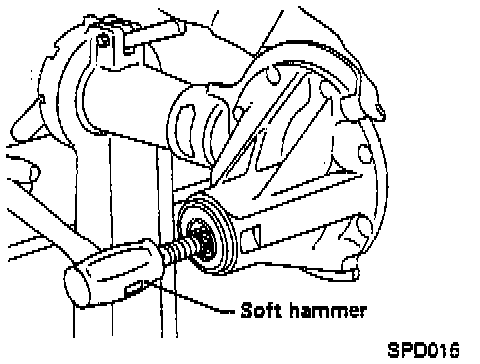

7. Remove drive pinion with soft hammer.
8. Remove oil seal.

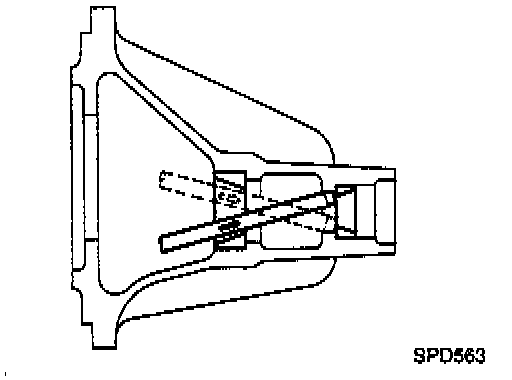

9. Remove pinion bearing outer races with a brass drift.

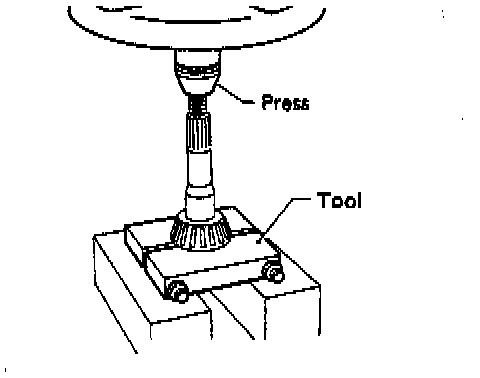

10. Pull out rear bearing inner cone with a press and Tool number ST30031000 (J22912-01).
