Shift Linkage: Testing and Inspection

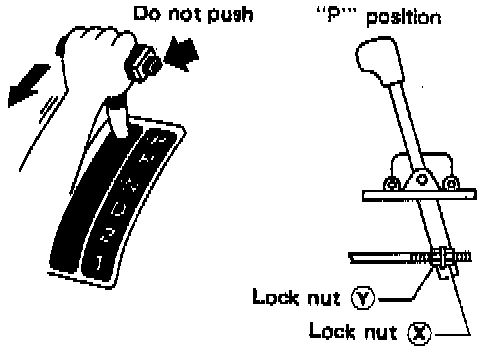

Move the selector lever from the "P" position to "1" position. You should be able to feel the detents in each position.
If the detents cannot be felt or the pointer indicating the position is improperly aligned, the linkage needs adjustment. Adjustments
