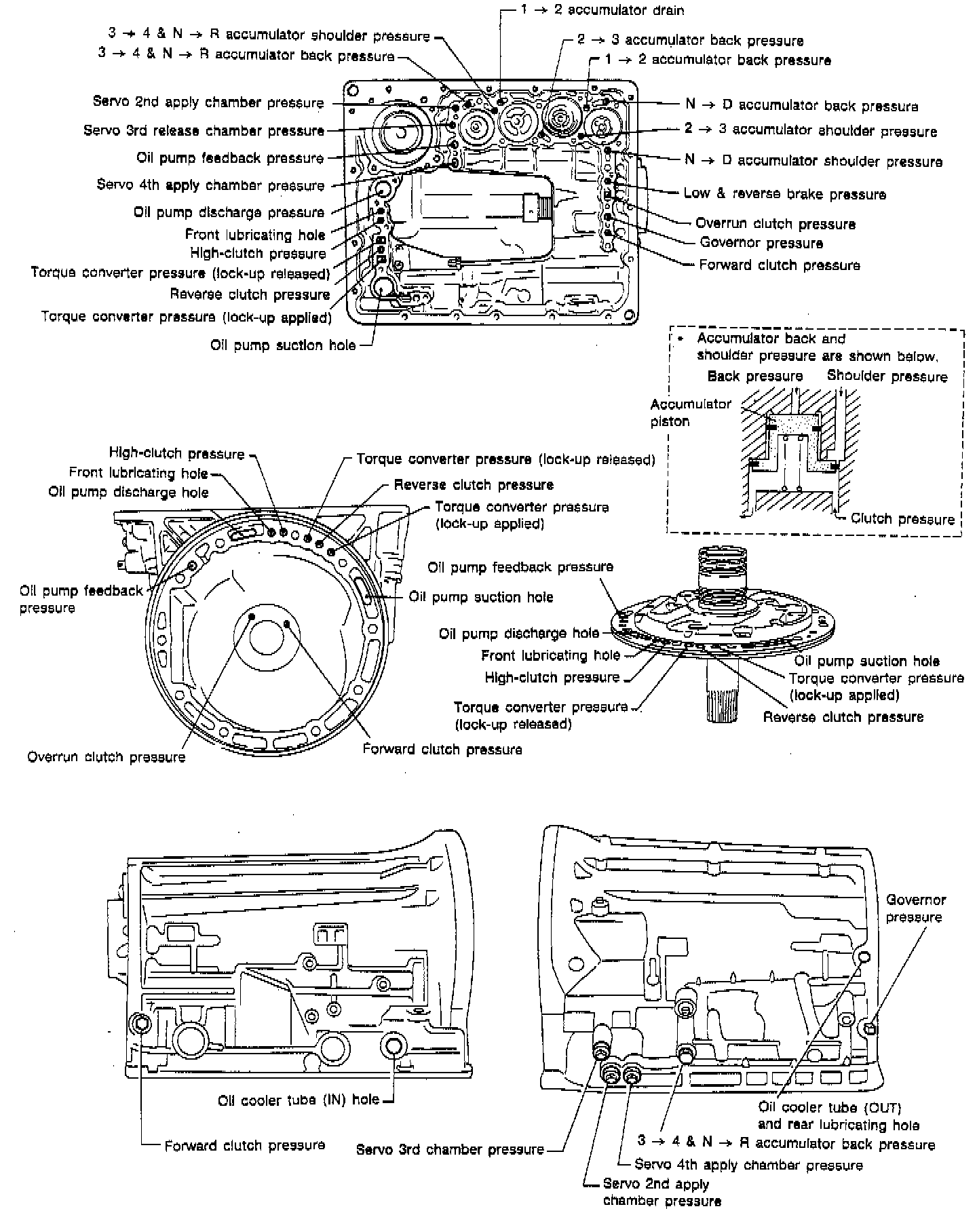

Home >> Nissan-Datsun >> 1997 >> D21 Hardbody XE 2WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Exploded Views >> Oil Channel
