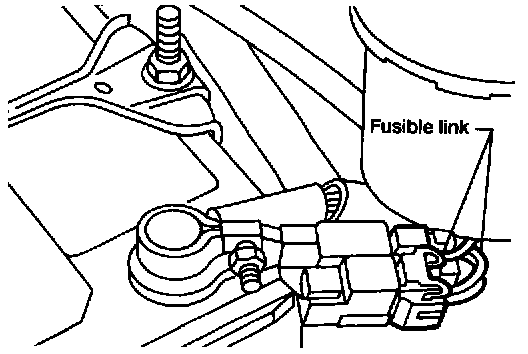

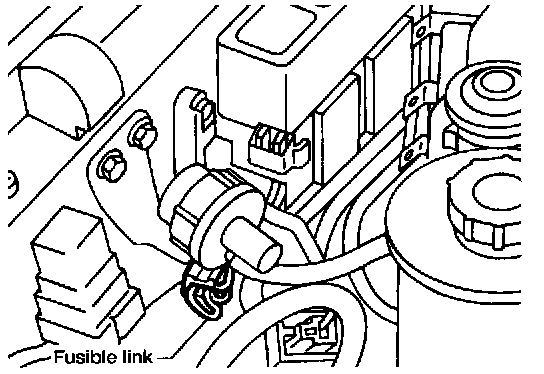

Fusible Link: Diagrams

Fusible Link:

Fusible Link:

A melted fusible link can be detected either by visual inspection or by feeling with fingertip. If its condition is questionable, use circuit tester or test lamp.

CAUTION:
^ If fusible link should melt, it is possible that a critical circuit (power supply or large current carrying circuit) is shorted. In such a case, carefully check these circuits and eliminate cause of problem.
^ Never wrap outside of fusible link with vinyl tape.
Important: Never let fusible link touch any other wiring harness, vinyl or rubber parts.
