Rear Seat Belt

CAUTION:
^ Do not disassemble buckle or seat belt assembly.
^ Replace anchor bolts if they are deformed or worn out.
^ Never oil tongue and buckle.
^ If any component of seat belt assembly is questionable, do not repair. Replace the seat belt assembly.
^ It webbing is cut, frayed, or damaged, replace seat belt assembly.
^ When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.
^ After any collision, inspect all seat belt assemblies, including retractors and other attached hardware.

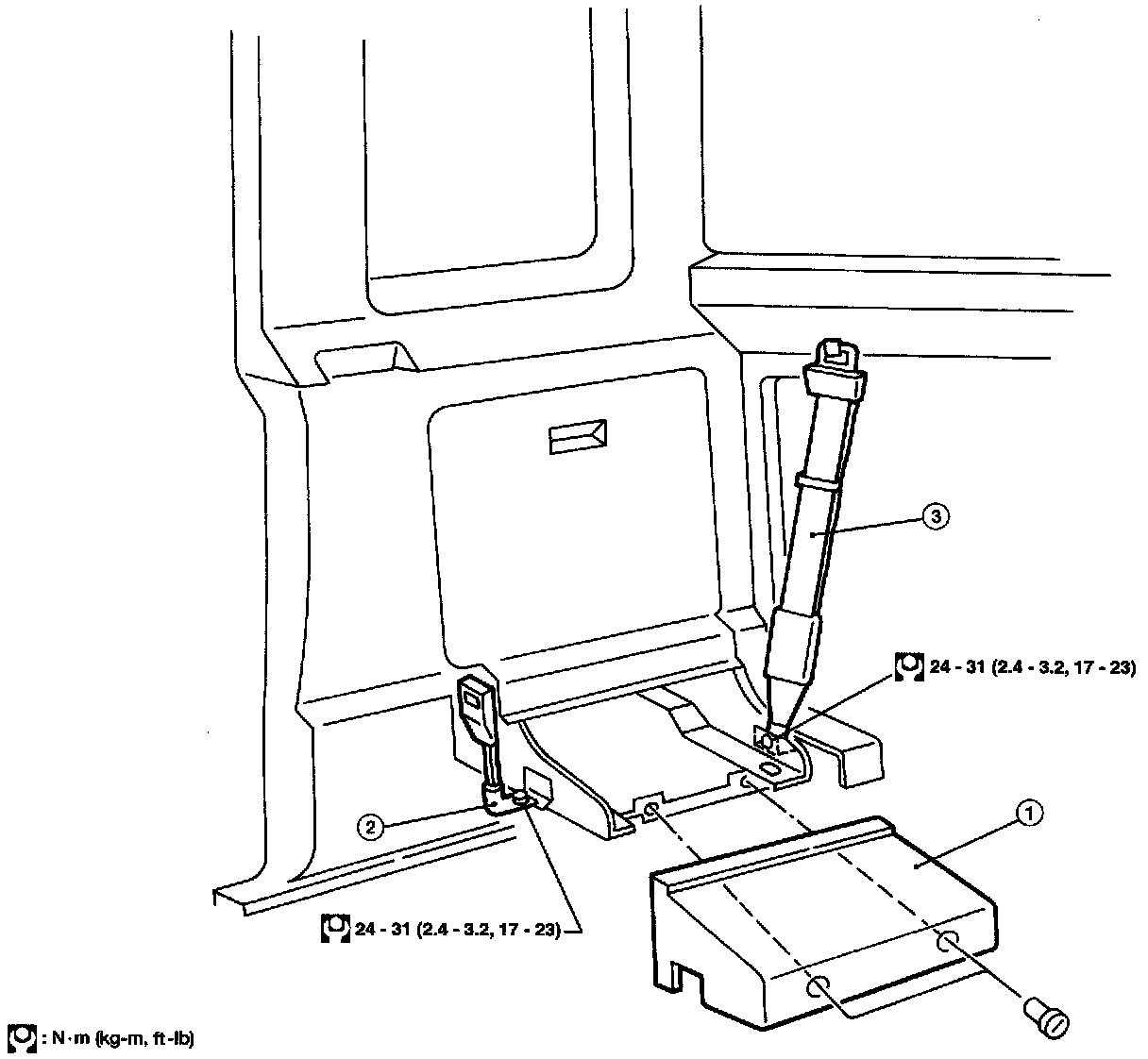

Rear Seat Belt:




REMOVEL
1. Remove underseat storage.
2. Remove buckle.
3. Remove seat belt anchor bolt.
