Collision Diagnosis

To repair the SRS, perform the following steps.
When SRS Is Activated In A Collision
1. Replace the diagnosis sensor unit.
2. Remove the air bag module.
3. Check the SRS components using the table shown.
^ Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
4. Install a new air bag module.
5. Conduct self-diagnosis using CONSULT and "AIR BAG" warning lamp. Refer to "Self diagnosis". Ensure that the entire SRS operates properly.

When SRS Is Not Activated In A Collision
1. Check the SRS components using the table shown.
^ Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
2. Conduct self-diagnosis using CONSULT and "AIR BAG" warning lamp. Refer to "Self-diagnosis". Ensure that the entire SRS operates properly.

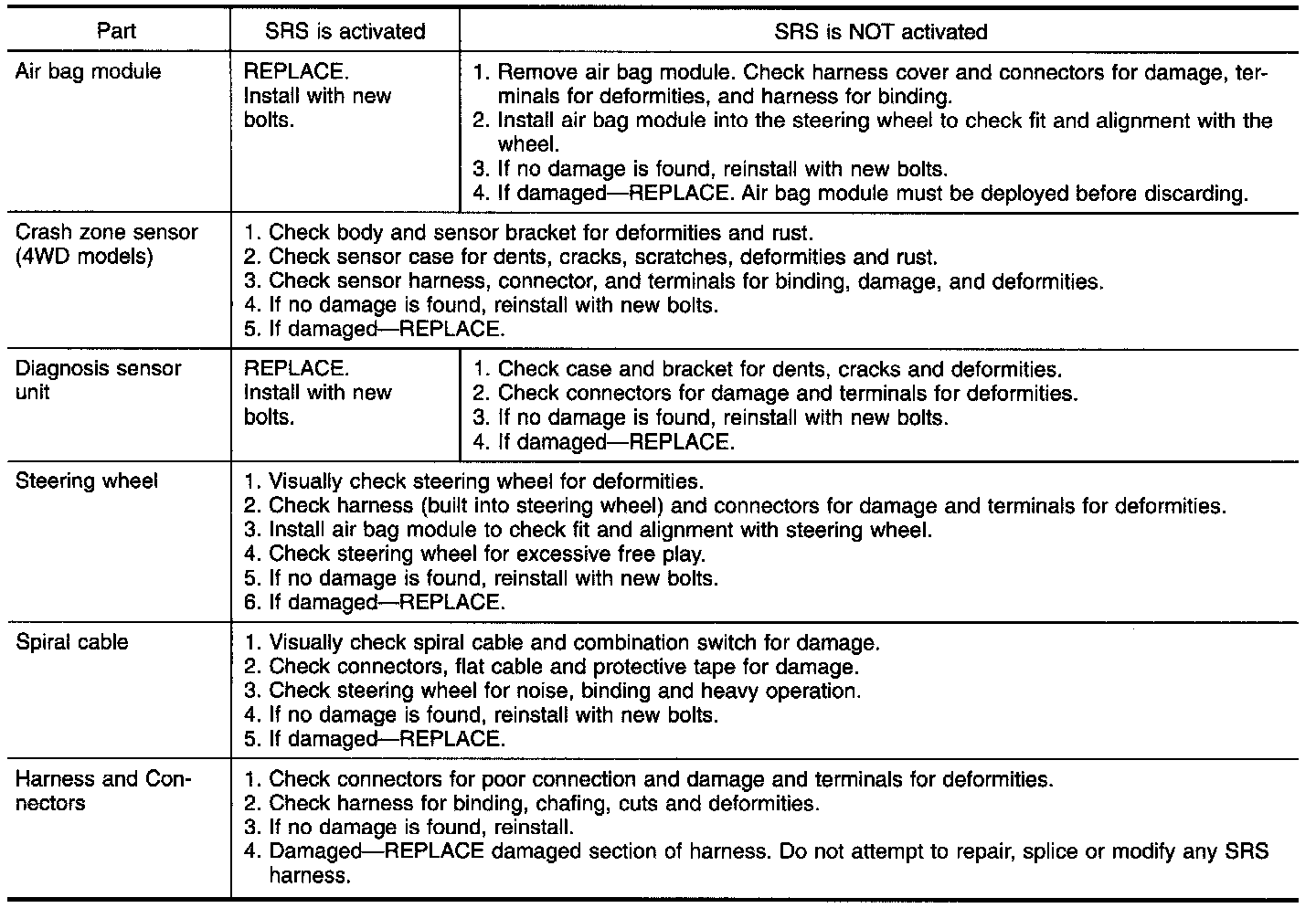

SRS Inspection:

SRS Inspection
