Nissan-Datsun
>>
1997
>>
D21 Hardbody XE 2WD L4-2389cc 2.4L SOHC MFI (KA24E)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Speedometer Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

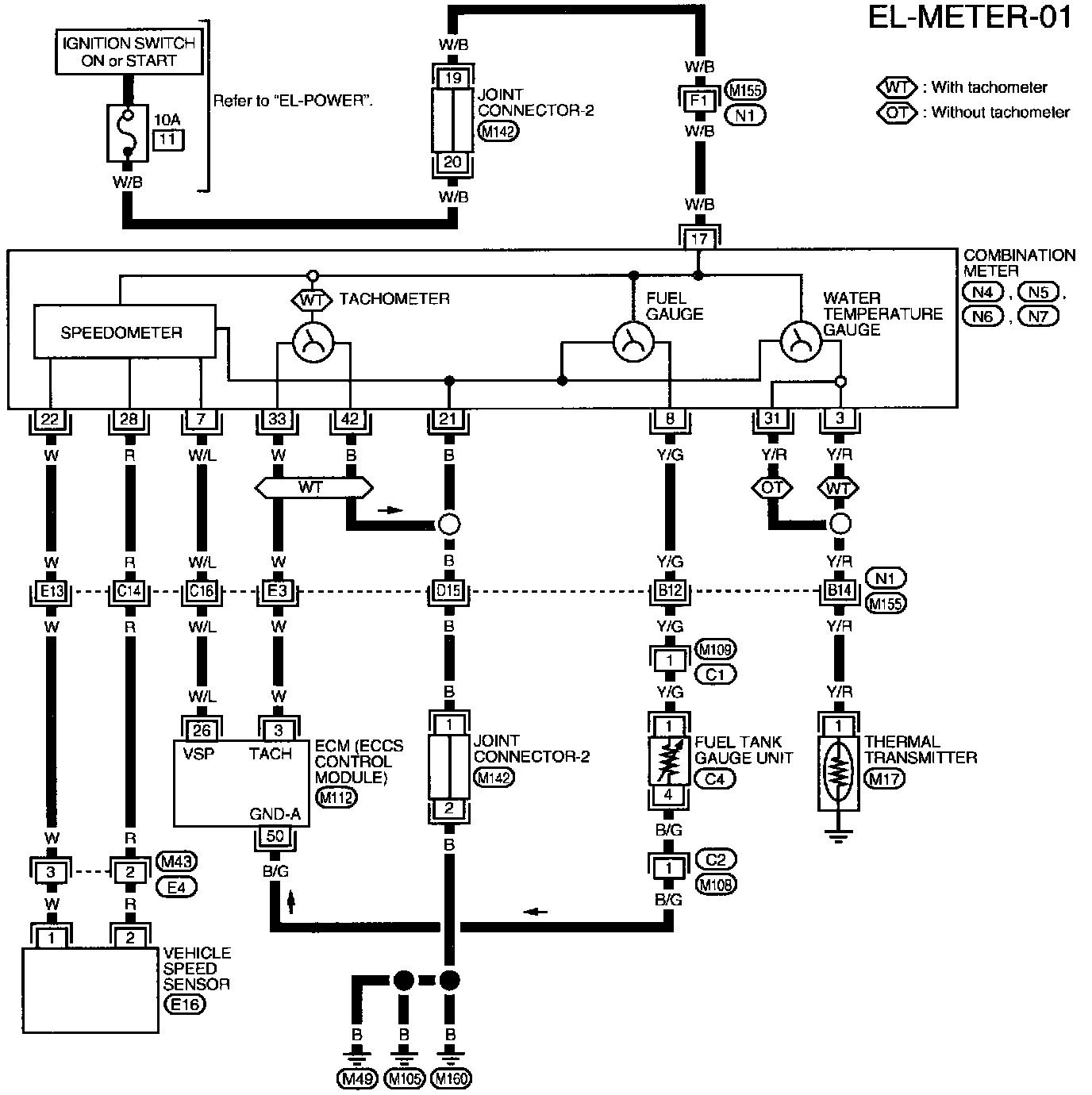

EL-METER-01 Speedometer, Tachometer, Temp. And Fuel Gauges:
