Fuel Temperature Sensor: Testing and Inspection

COMPONENT INSPECTION
Tank Fuel Temperature Sensor

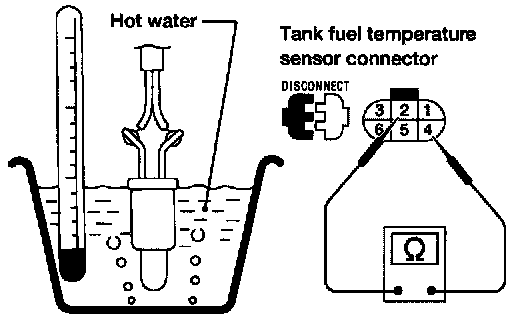

Check resistance by heating with hot water or heat gun as shown in the figure.

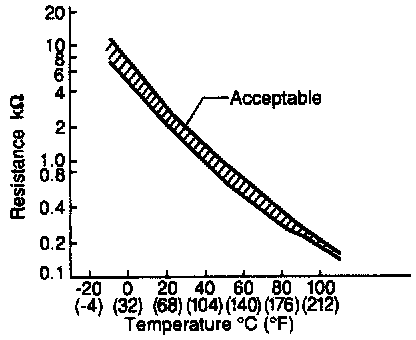

Temperature, °C (°F) / Resistance, K Ohms
20 (68) / 2.3 - 2.7
50 (122) / 0.79 - 0.90

If NG, replace tank fuel temperature sensor.
