With Manufacturer's Scan Tool (CONSULT)

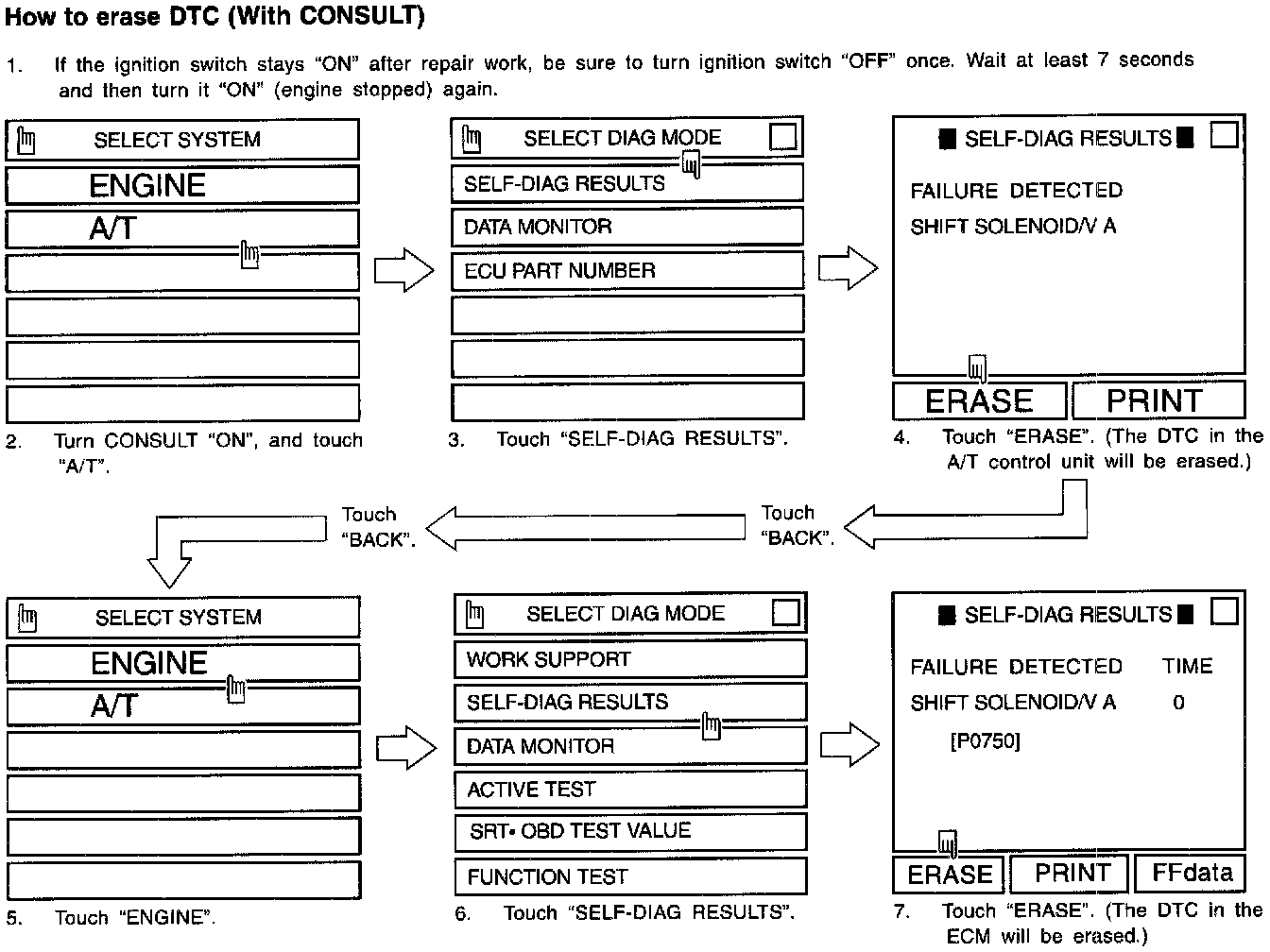

HOW TO ERASE DTC (With CONSULT)

NOTE: If the diagnostic trouble code is not for A/T related items, skip steps 2 through 4.




1. If the ignition switch stays "ON" after repair work, be sure to turn ignition switch "OFF" once. Wait at least 7 seconds and then turn it "ON" (engine stopped) again.
2. Turn CONSULT "ON" and touch "A/T".
3. Touch "SELF-DIAG RESULTS".
4. Touch "ERASE". (The DTC in the A/T control unit will be erased.) Then touch "BACK" twice.
5. Touch "ENGINE".
6. Touch "SELF-DIAG RESULTS".
7. Touch "ERASE". (The DTC in the ECM will be erased.)
- If DTCs are displayed for both ECM and A/T control unit, they need to be erased individually from the ECM and A/T control unit.
