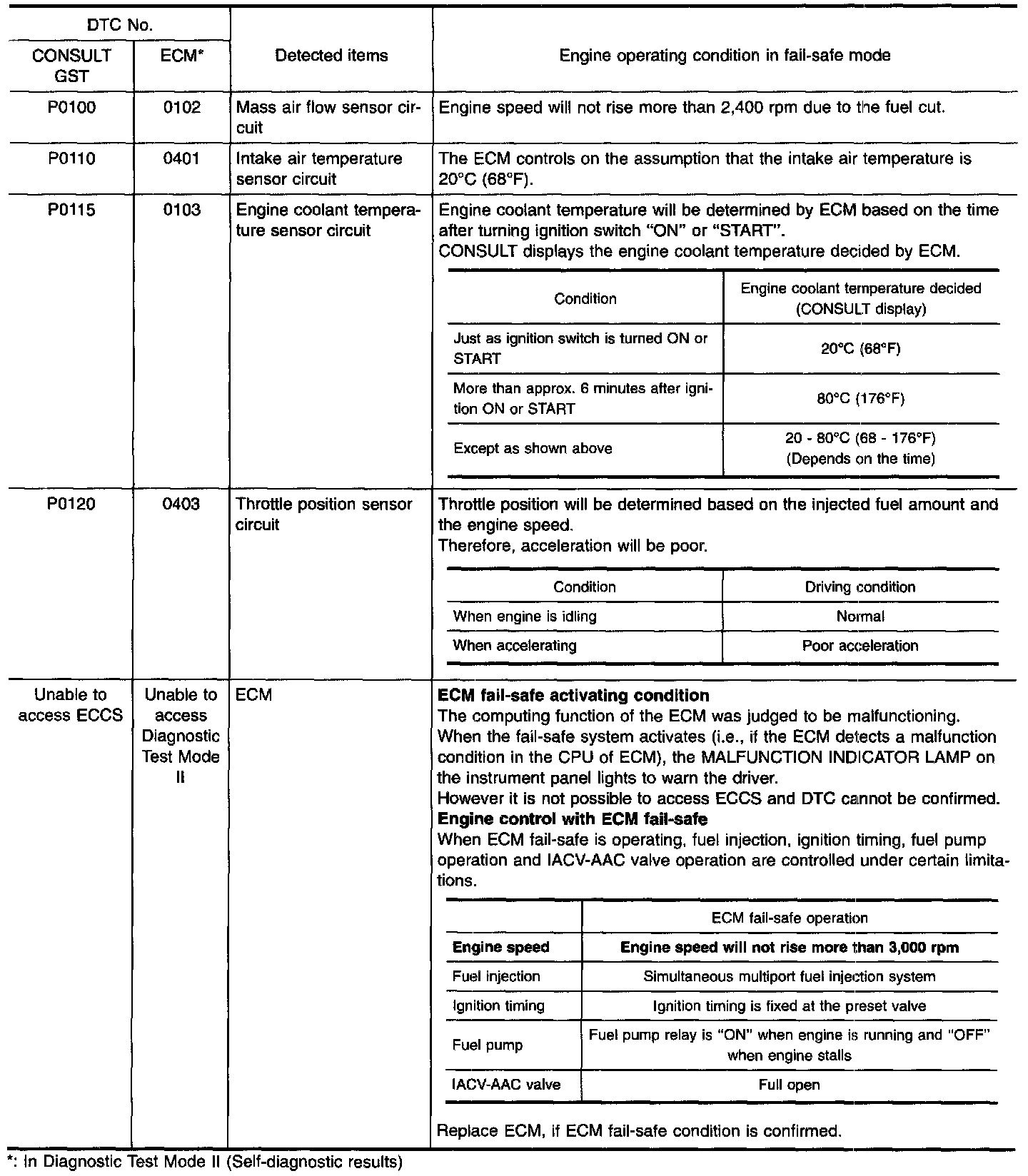

Fail Safe Chart




The ECM enters fail-safe mode, if any of the following DTCs is recorded due to the open or short circuit. When the ECM enters the fail-safe mode, the MIL illuminates.
