IACV-FICD Solenoid Valve

COMPONENT DESCRIPTION
The idle air adjusting (IAA) unit is made up of the IACV-AAC valve, IACV-FICD solenoid valve and idle adjusting screw. It receives the signal from the ECM and controls the idle speed at the preset value.




ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECCS ground).

EC-FICD-01 IACV-FICD Solenoid Valve:

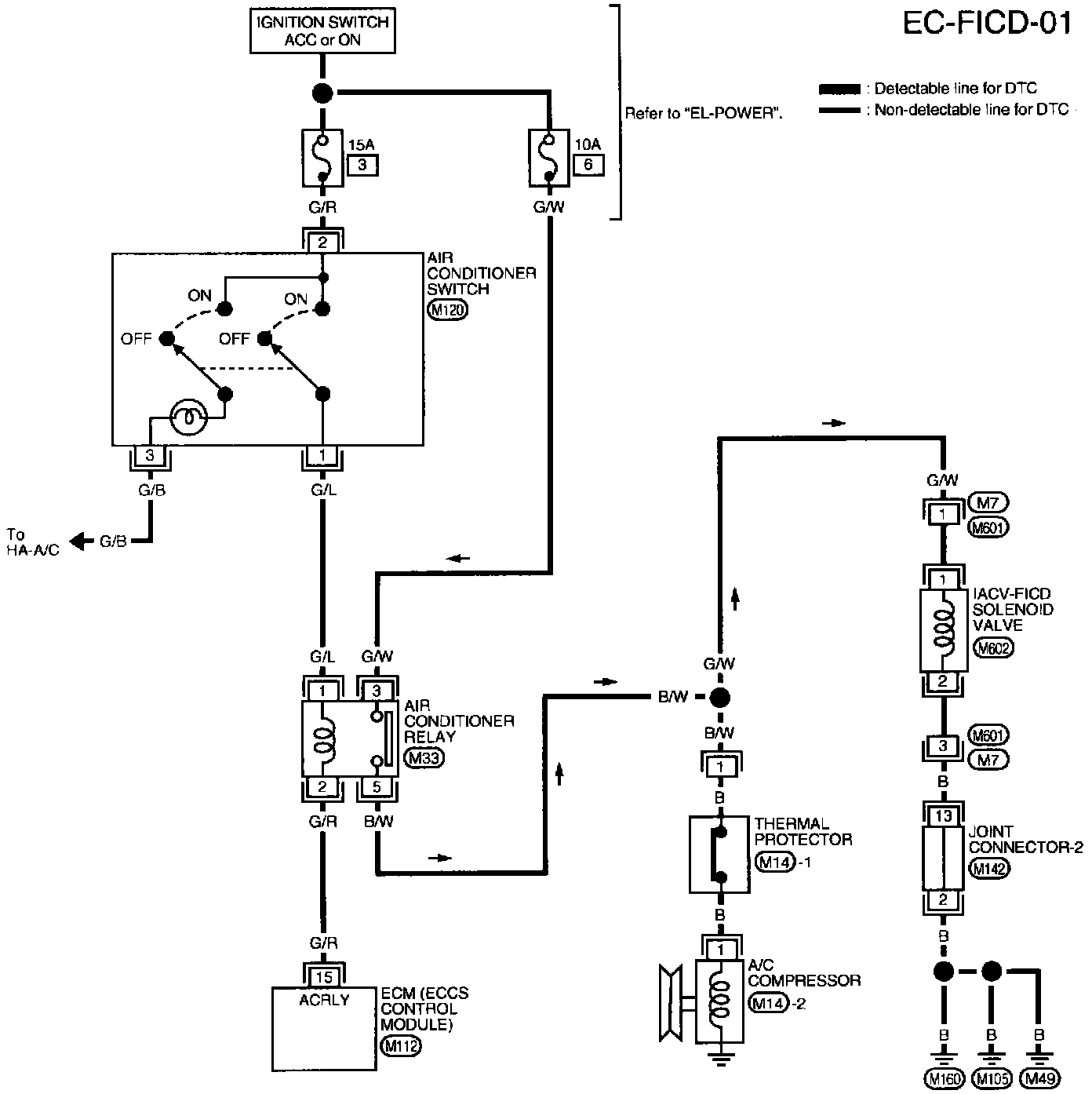

WIRING DIAGRAM

PAGE REFERENCE:

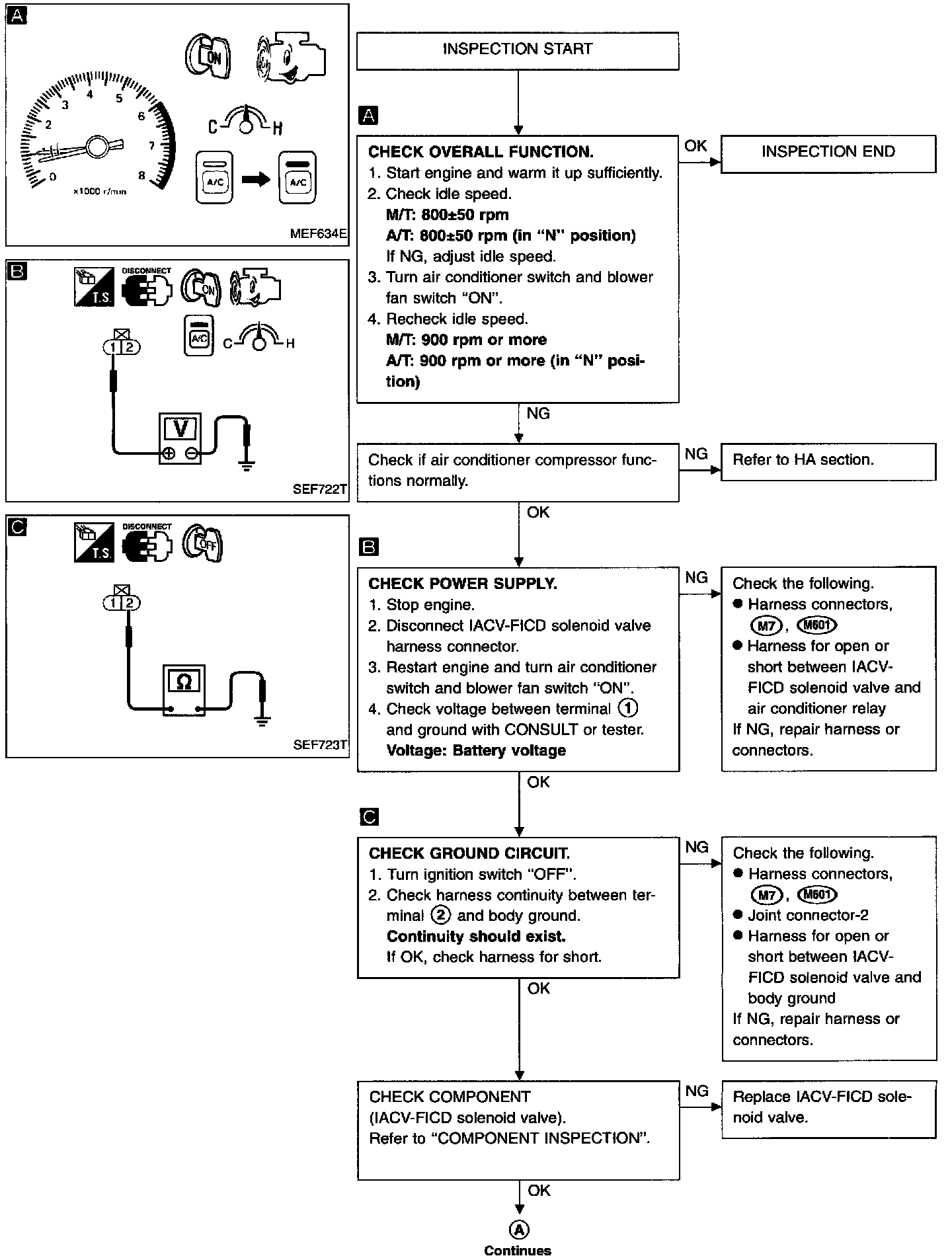

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION
IACV-FICD Solenoid Valve
Disconnect IACV-FICD solenoid valve harness connector.




- Check for clicking sound when applying 12V direct current to terminals.




- Check plunger for seizing or sticking.
- Check for broken spring.
