Connector Symbols

Most of connector symbols in wiring diagrams are shown from the terminal side.
^ Connector symbols shown from the terminal side are enclosed by a single line and followed by the direction mark.
^ Connector symbols shown from the terminal side are enclosed by a double line and followed by the direction mark.



^ Connector guides for male terminals are shown in black.
^ Connector guides for female terminals are shown in white.

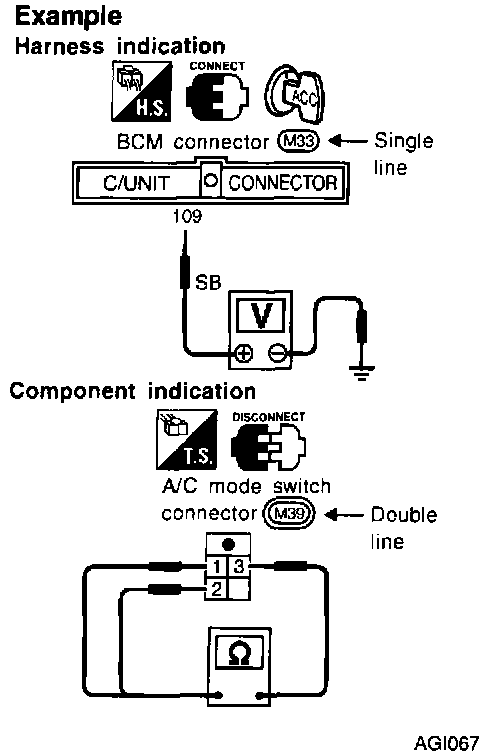

Connector Symbols:

^ Connectorr numbers that indicate harness are enclosed by a single line.
^ Connector numbers that indicate components are enclosed by a double line.
