Cranking Signal: Testing and Inspection

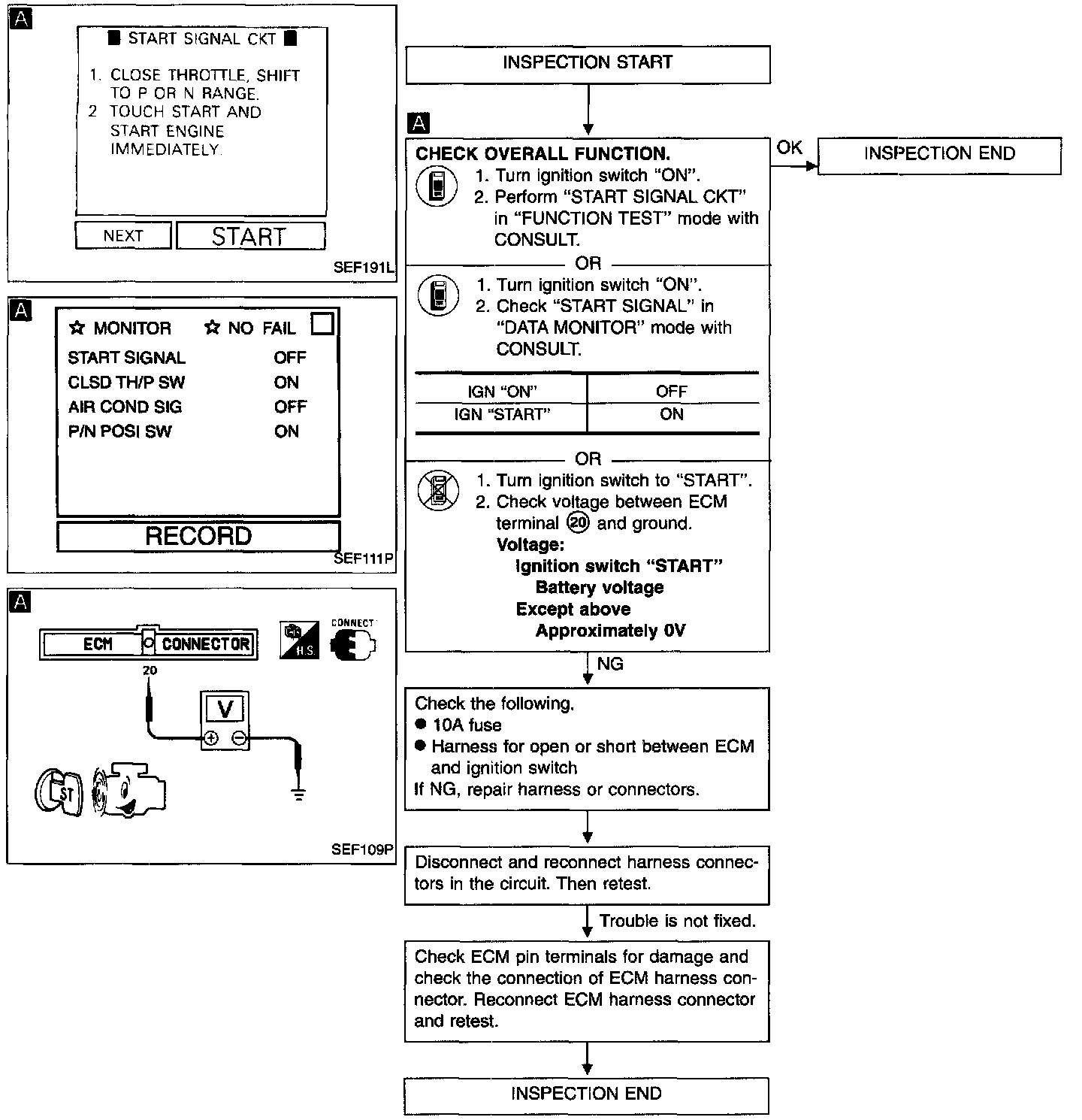

DIAGNOSTIC PROCEDURE




ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECCS ground).




CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values.
