Charging System

Diode Check:

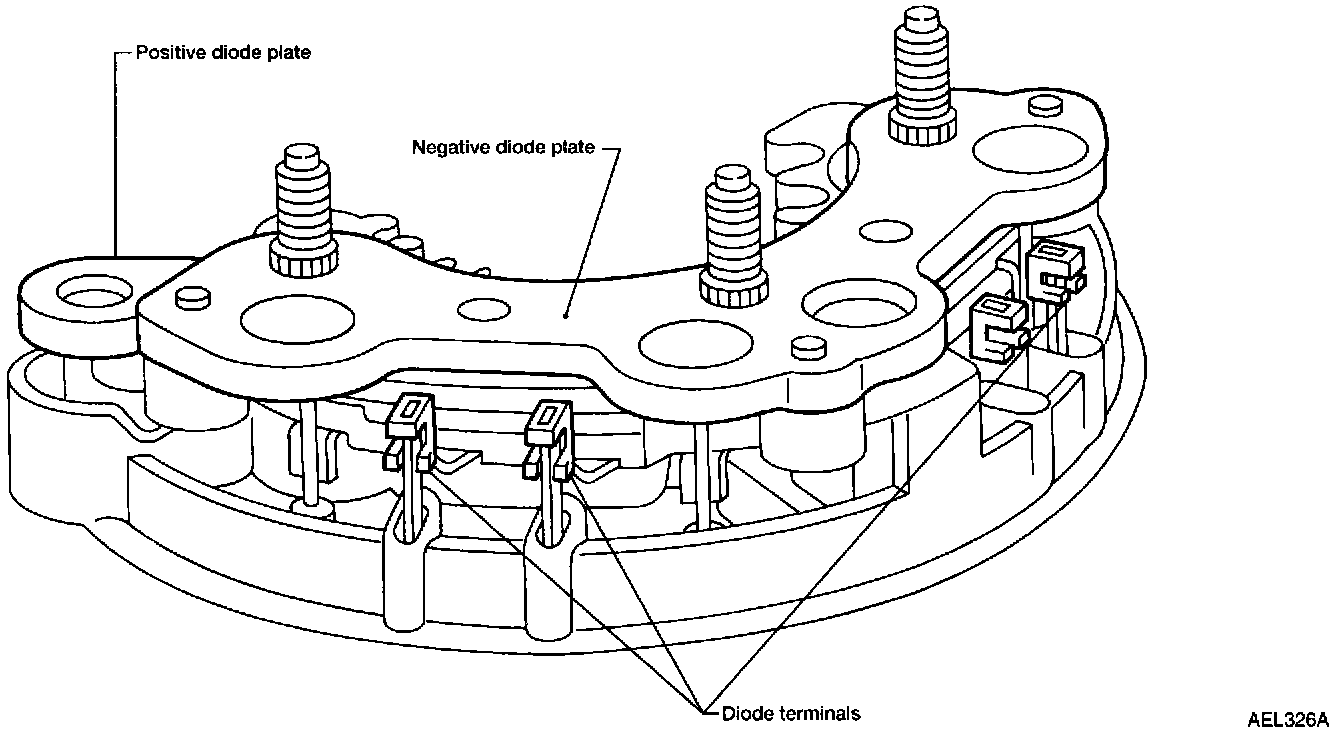

MAIN DIODES
^ in order to check diodes, they must be unsoldered from the stator.
^ Use an ohmmeter to check condition of diodes as indicated in chart below.
^ if any of the test results are not satisfactory, replace diode assembly.
