How to Read Harness Layout

Harness Layout:

The following Harness Layouts use a map style grid to help locate connectors on the drawings:
^ Main Harness and Air Bag Harness

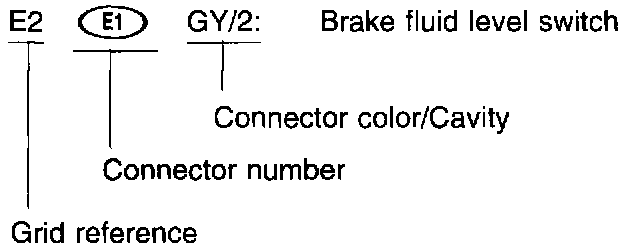

To use the grid reference
1) Find the desired connector number on the connector list.
2) Find the grid reference.
3) On the drawing find the crossing of the grid reference letter column and number row.
4) Find the connector number in the crossing zone.
5) Follow the line (if used) to the connector.

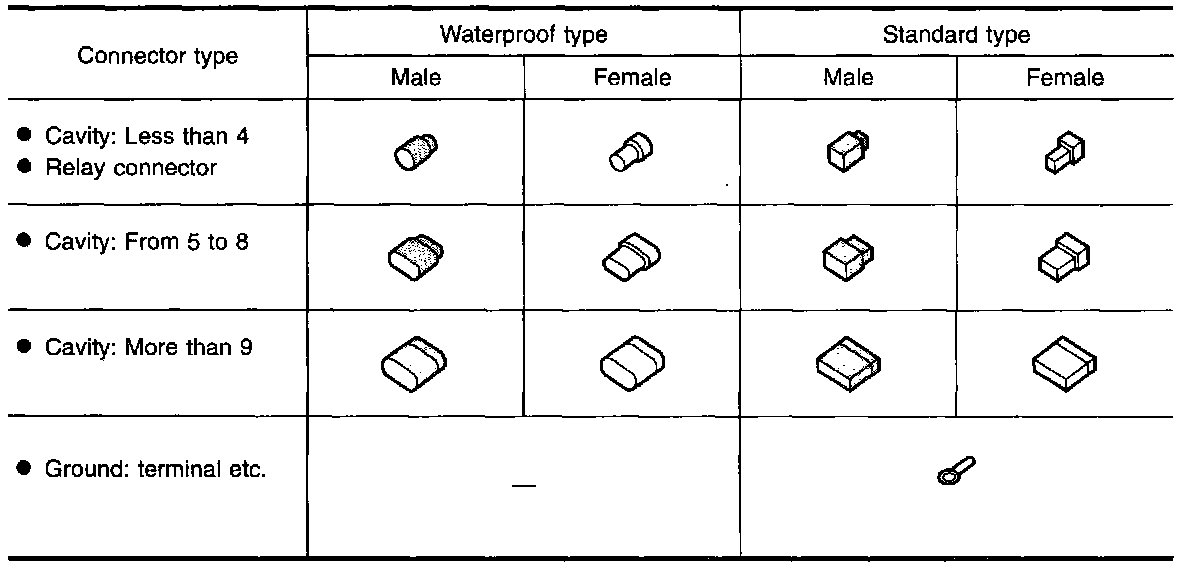

Connector Symbol:

CONNECTOR SYMBOL
Main symbols of connectors (In harness layout) are indicated in the image.
