Turn Signal Switch: Service and Repair

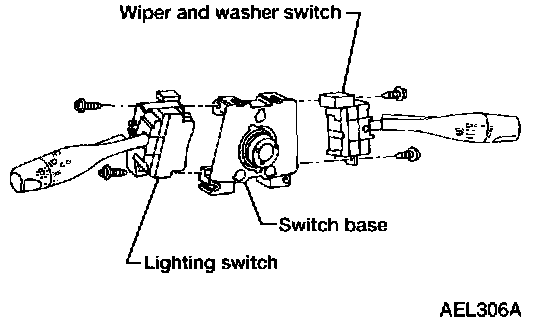

Combination Switch/Replacement:






- Each switch can be replaced without removing combination switch base.

Combination Switch/Replacement:

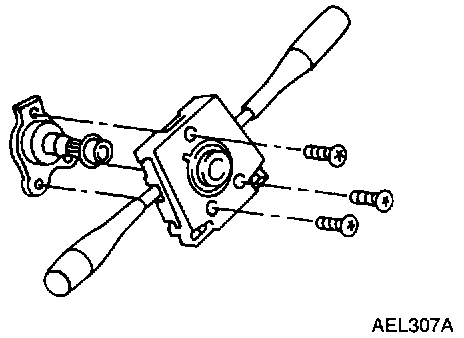

COMBINATION SWITCH BASE REMOVAL
- To remove combination switch base, remove base attaching screw and turn after pushing on it.
