Turn Signal Flasher: Testing and Inspection

Combination Flasher Unit Check:

^ Before checking, ensure that bulbs meet specifications.

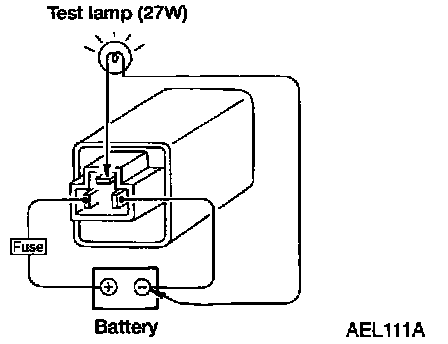

^ Connect a battery and test lamp to the combination flasher unit, as shown. Combination flasher unit is properly functioning if it blinks when power is supplied to the circuit.
