Key Switch

Key Switch:

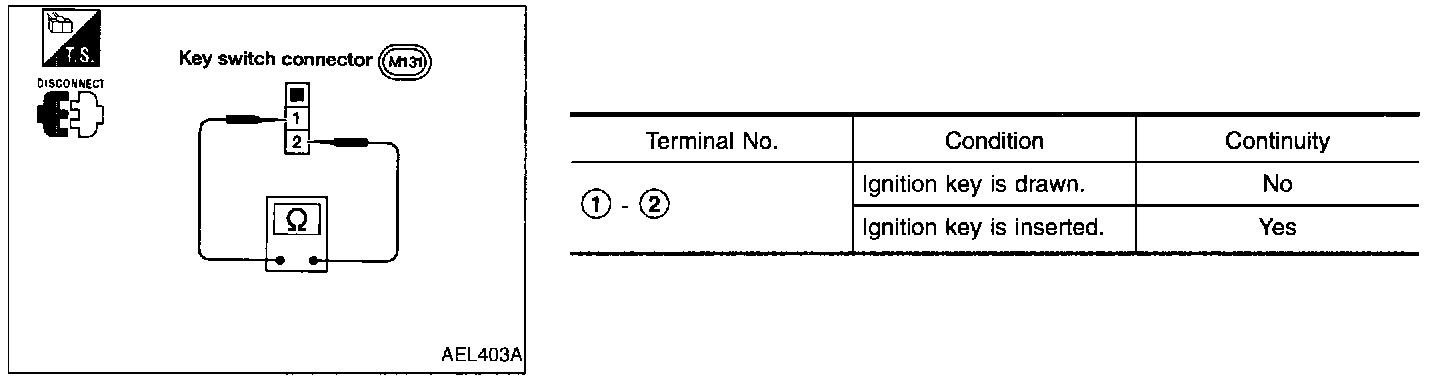

Check continuity between terminals (1) and (2) when ignition key is drawn and inserted.
