Home >> Nissan-Datsun >> 1997 >> D21 Hardbody XE 2WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Procedures >> Diagnostic Procedure 2

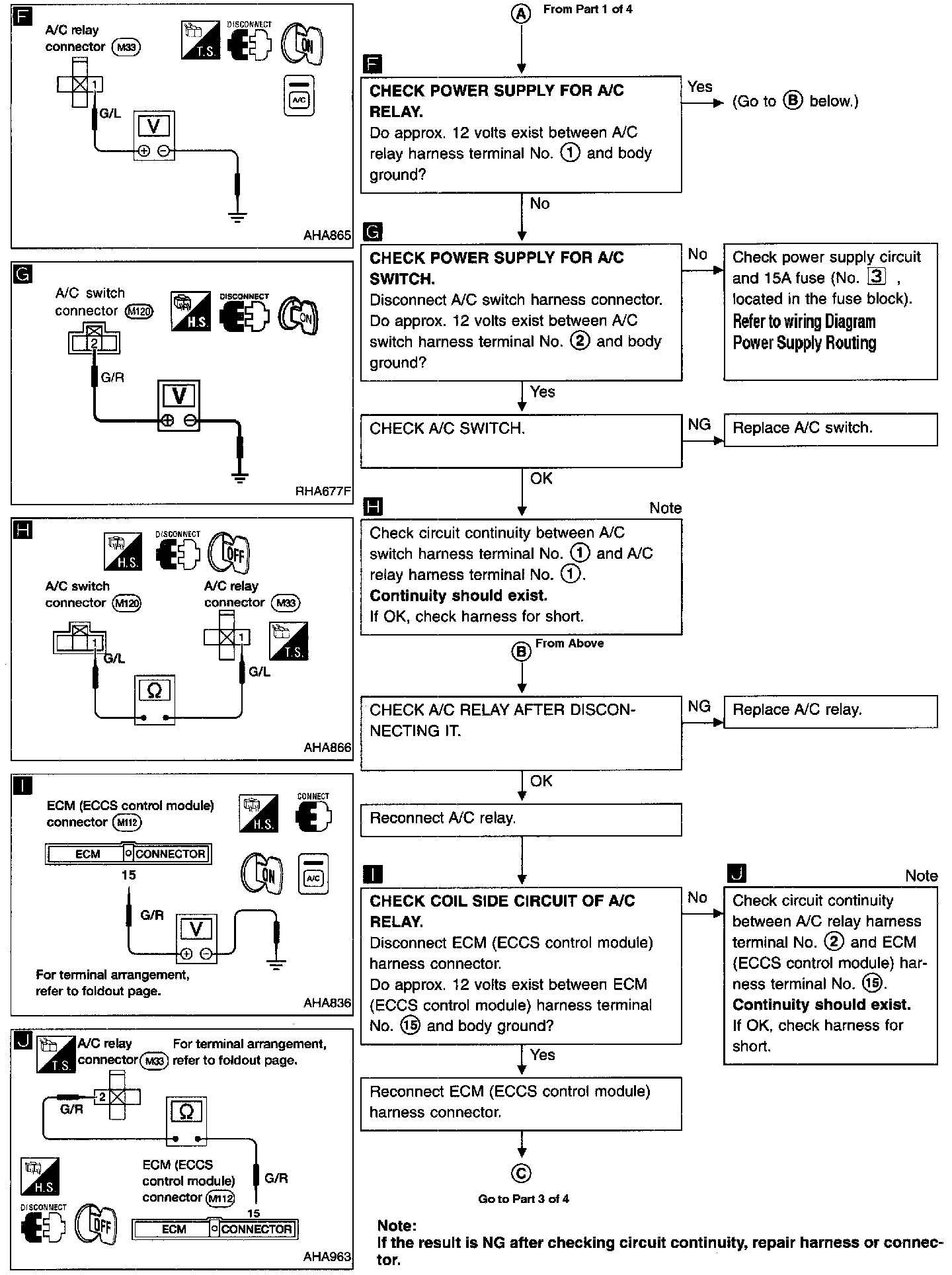

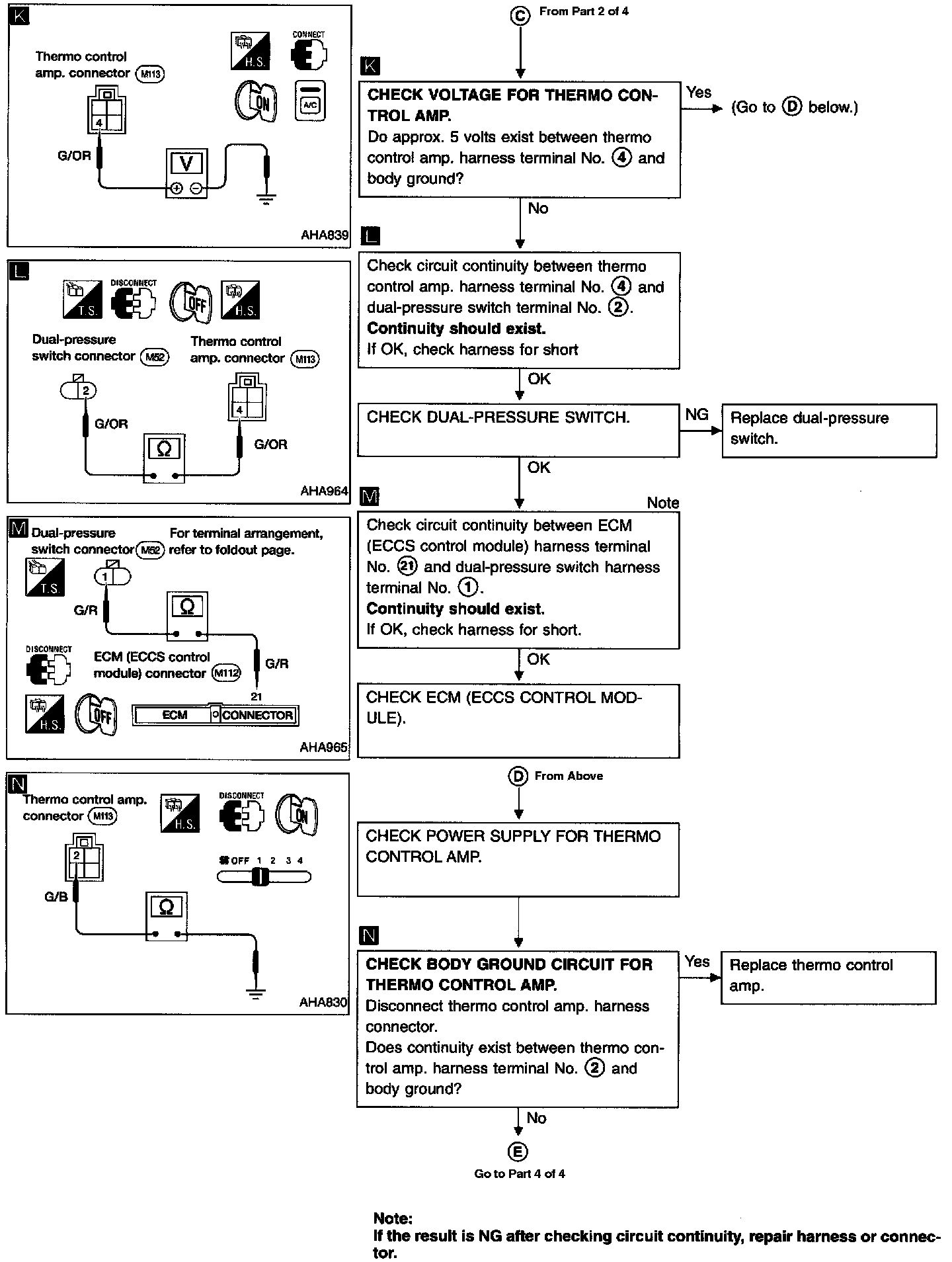

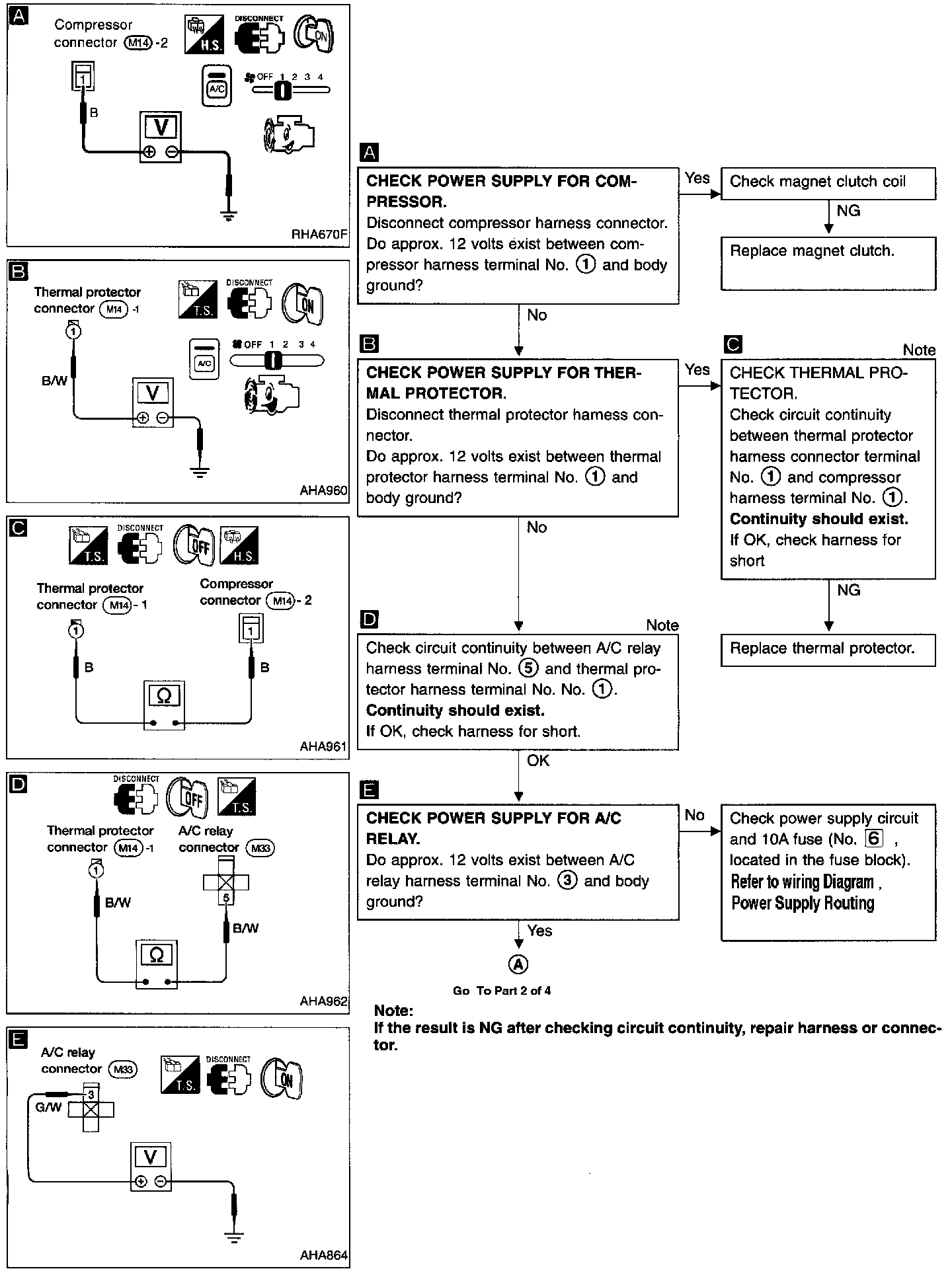

Diagnostic Procedure 2














SYMPTOM: Magnet clutch does not engage when A/C switch and fan switch are ON.
^ Perform PRELIMINARY CHECK 1 before referring to the flow chart.
