Refrigerant Oil: Service and Repair

The lubricant used to lubricate the compressor circulates through the system with the refrigerant. Whenever any A/C component is replaced or gas leakage occurs, lubricant must be added.
If lubricant quantity is not maintained properly, the following malfunctions may result:
- Lack of lubricant: May lead to a seized compressor
- Excessive lubricant: Inadequate cooling (thermal exchange interference)

LUBRICANT
Name: NISSAN A/C System Lubricant Type R
Part No.: KLH00-PAGR0








CHECKING AND ADJUSTING

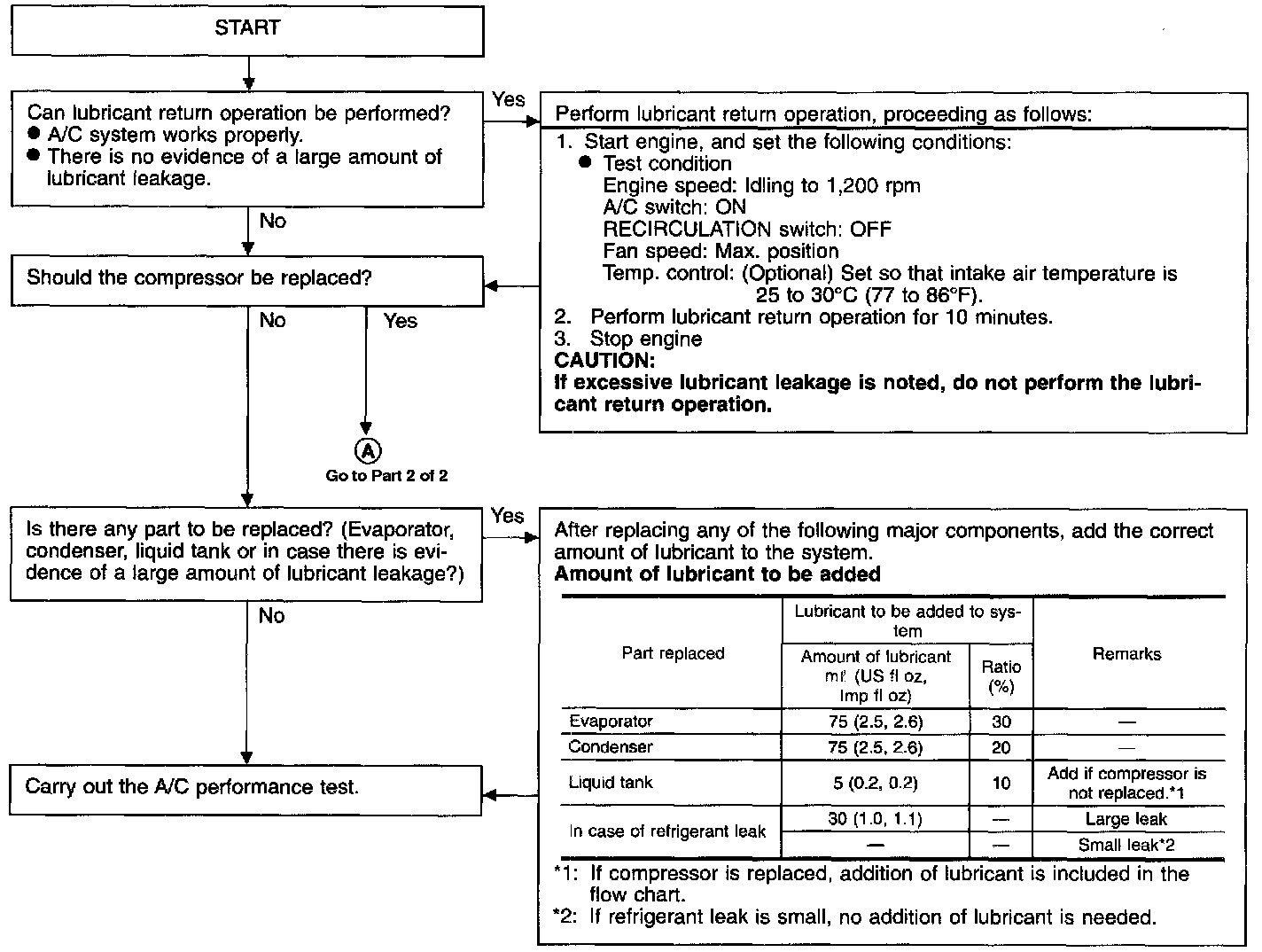

Adjust the lubricant quantity according to the flowchart shown.





LUBRICANT ADJUSTING PROCEDURE FOR COMPRESSOR REPLACEMENT
