Valve: Service and Repair

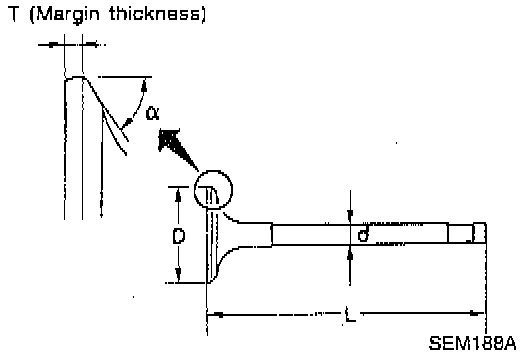

Check dimensions of each valve.
When the valve head has been worn down to 0.5 mm (0.020 inch) in margin thickness, replace valve.
Grinding allowance for valve stem tip is 0.2 mm (0.008 inch) or less.
Check dimensions of each valve.
When the valve head has been worn down to 0.5 mm (0.020 inch) in margin thickness, replace valve.
Grinding allowance for valve stem tip is 0.2 mm (0.008 inch) or less.
