Idle Speed/Throttle Actuator - Electronic

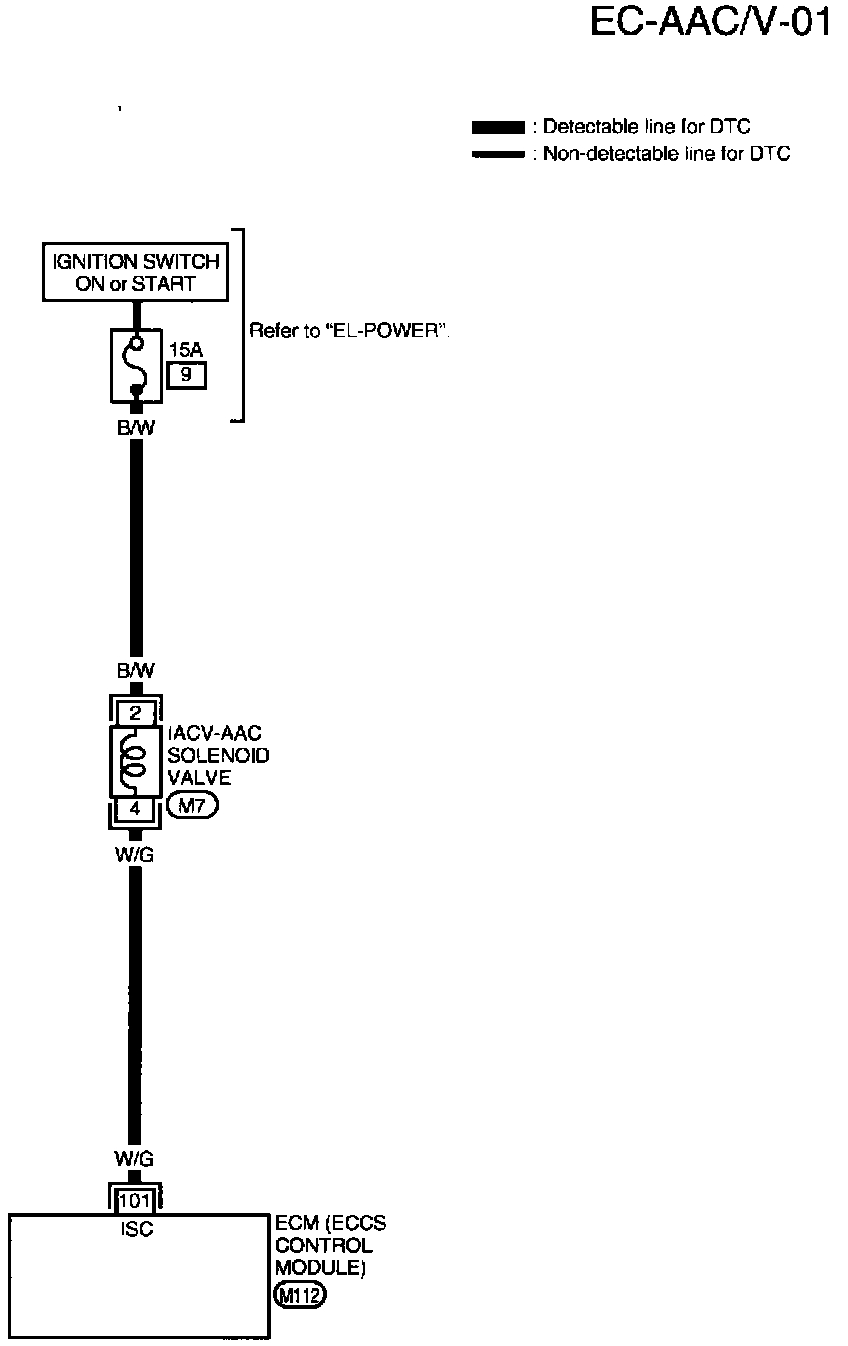

EC-AAC/V-01 Idle Air Control Valve (IACV)-Auxiliary Air Control Valve (AAC) Valve (DTC P0505):
