Home >> Nissan-Datsun >> 1997 >> D21 Hardbody XE 2WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light

Map Light

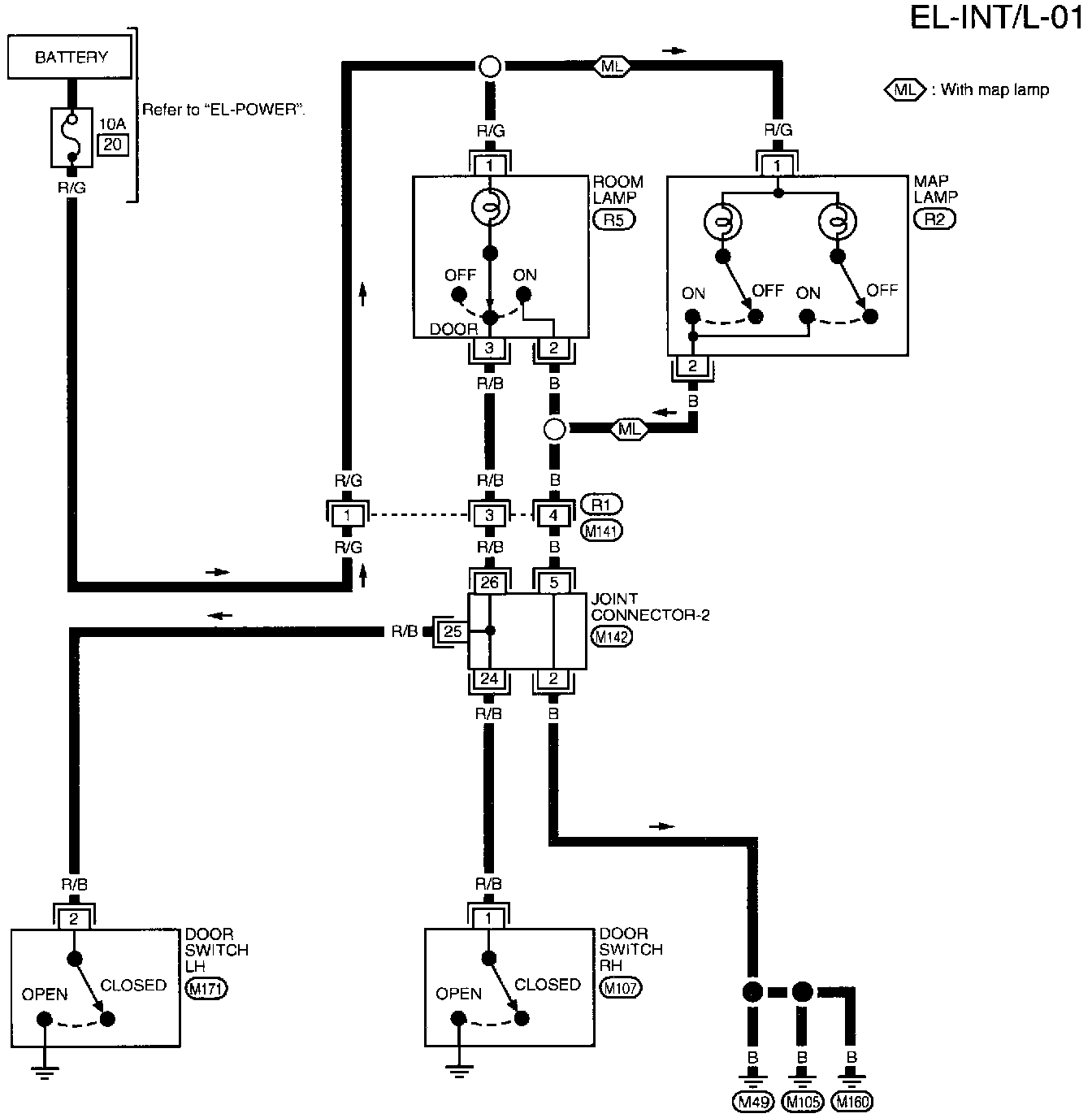

EL-INT/L-01 Interior And Map Lamps:
