EL-ILL
EL-ILL

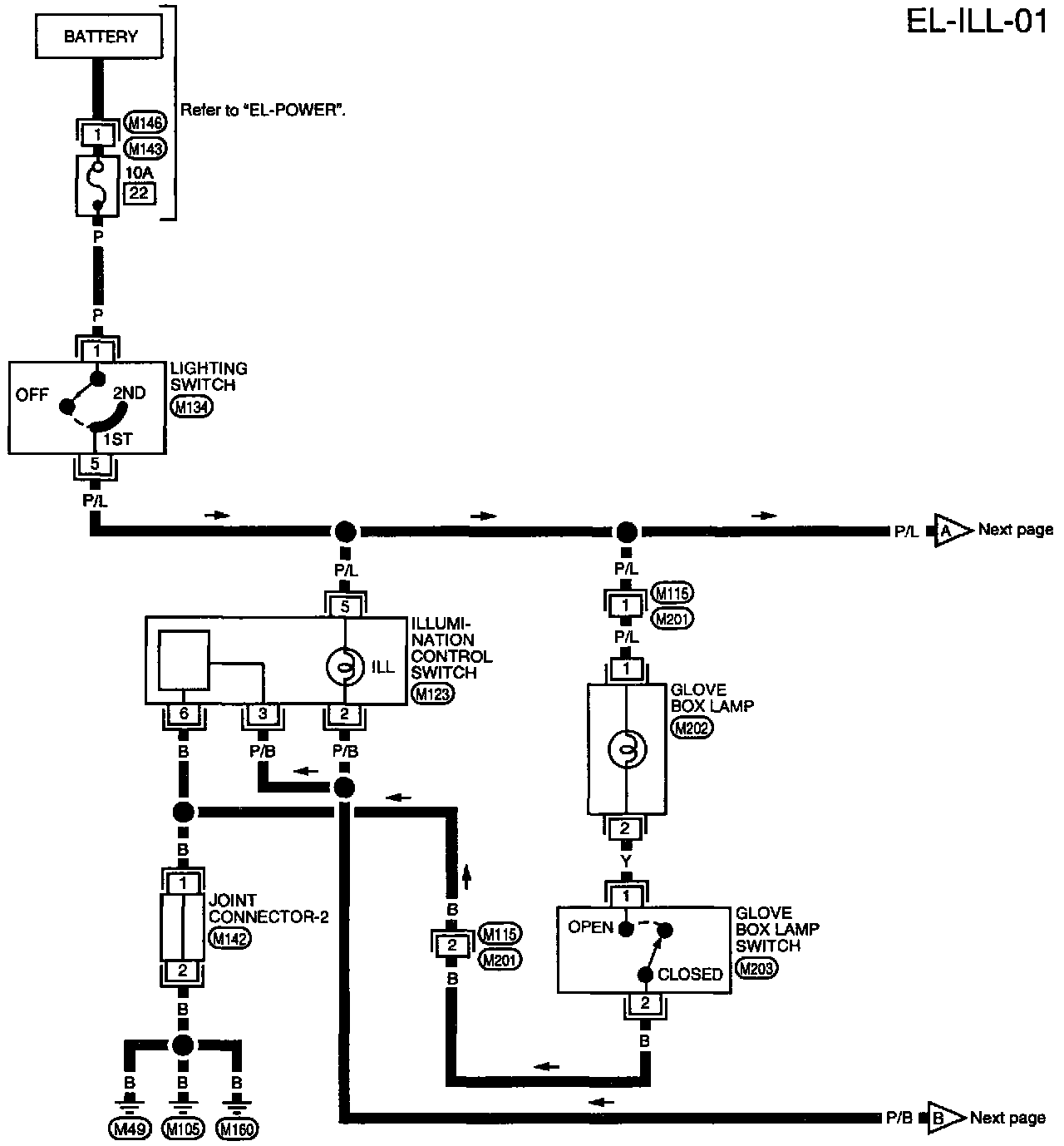

EL-ILL-01 Illumination (Part 1 Of 3):

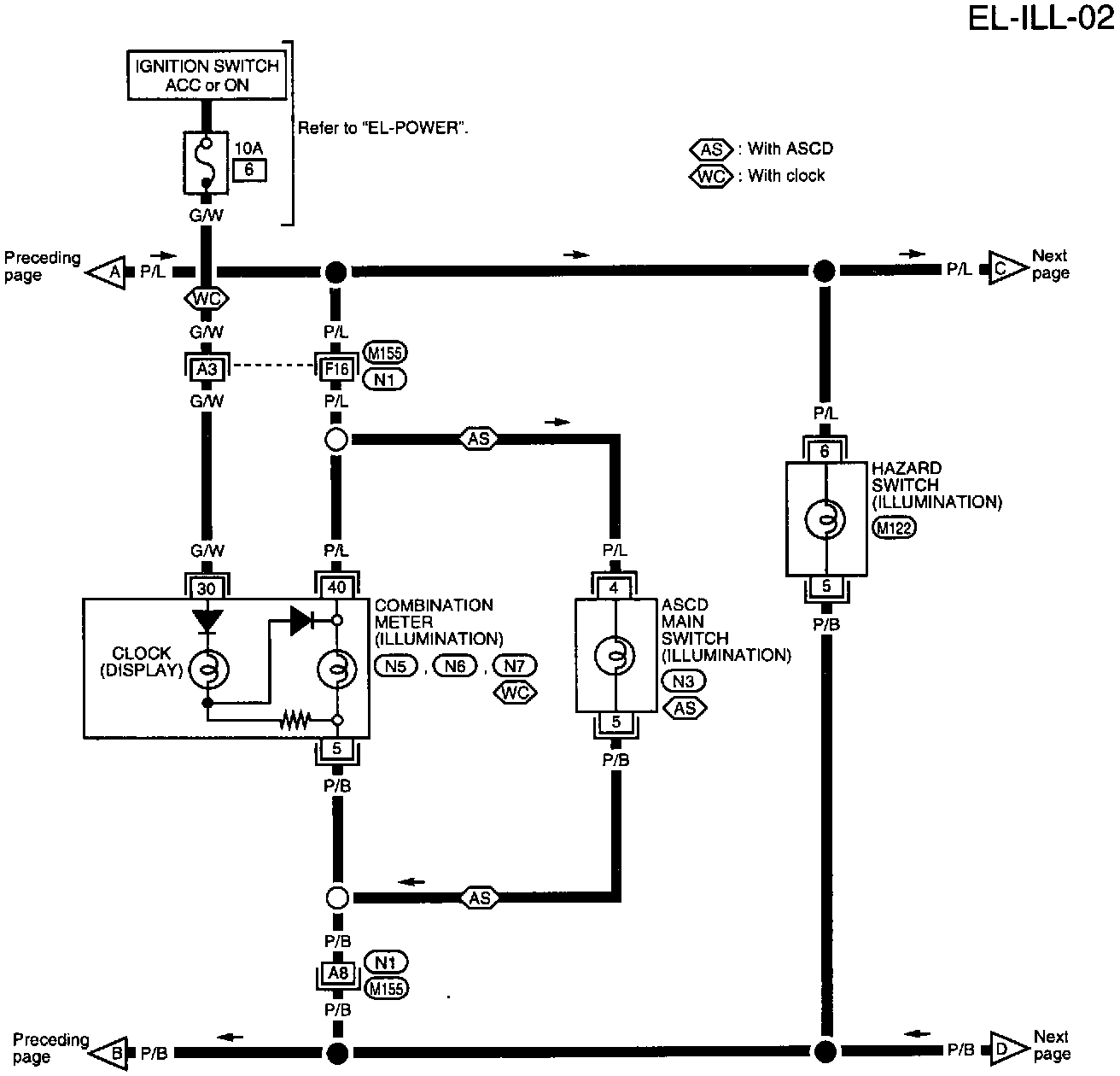

EL-ILL-02 Illumination (Part 2 Of 3):

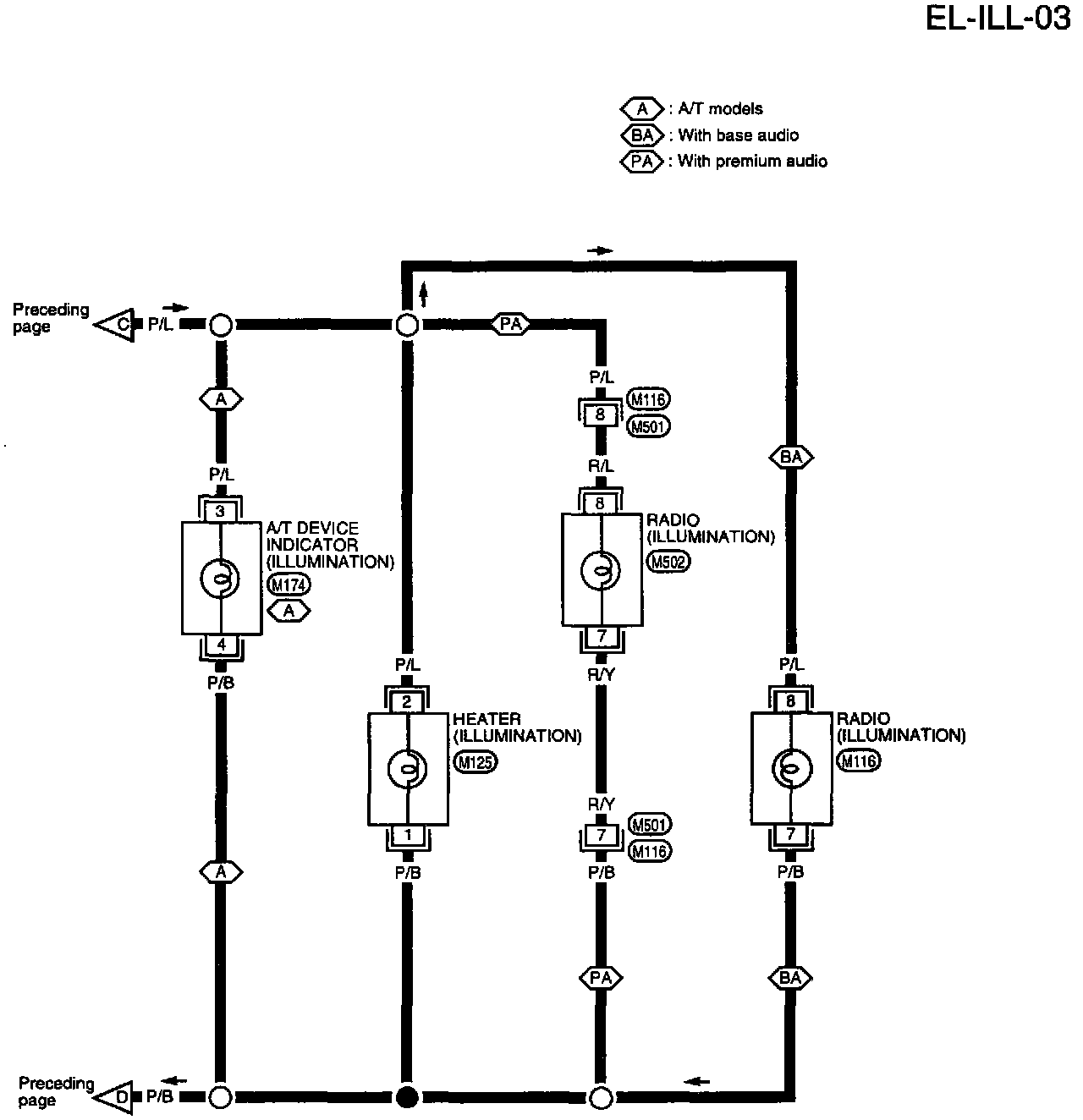

EL-ILL-03 Illumination (Part 3 Of 3):
