Home >> Nissan-Datsun >> 1997 >> D21 Hardbody XE 2WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> EC-RRO2

EC-RRO2

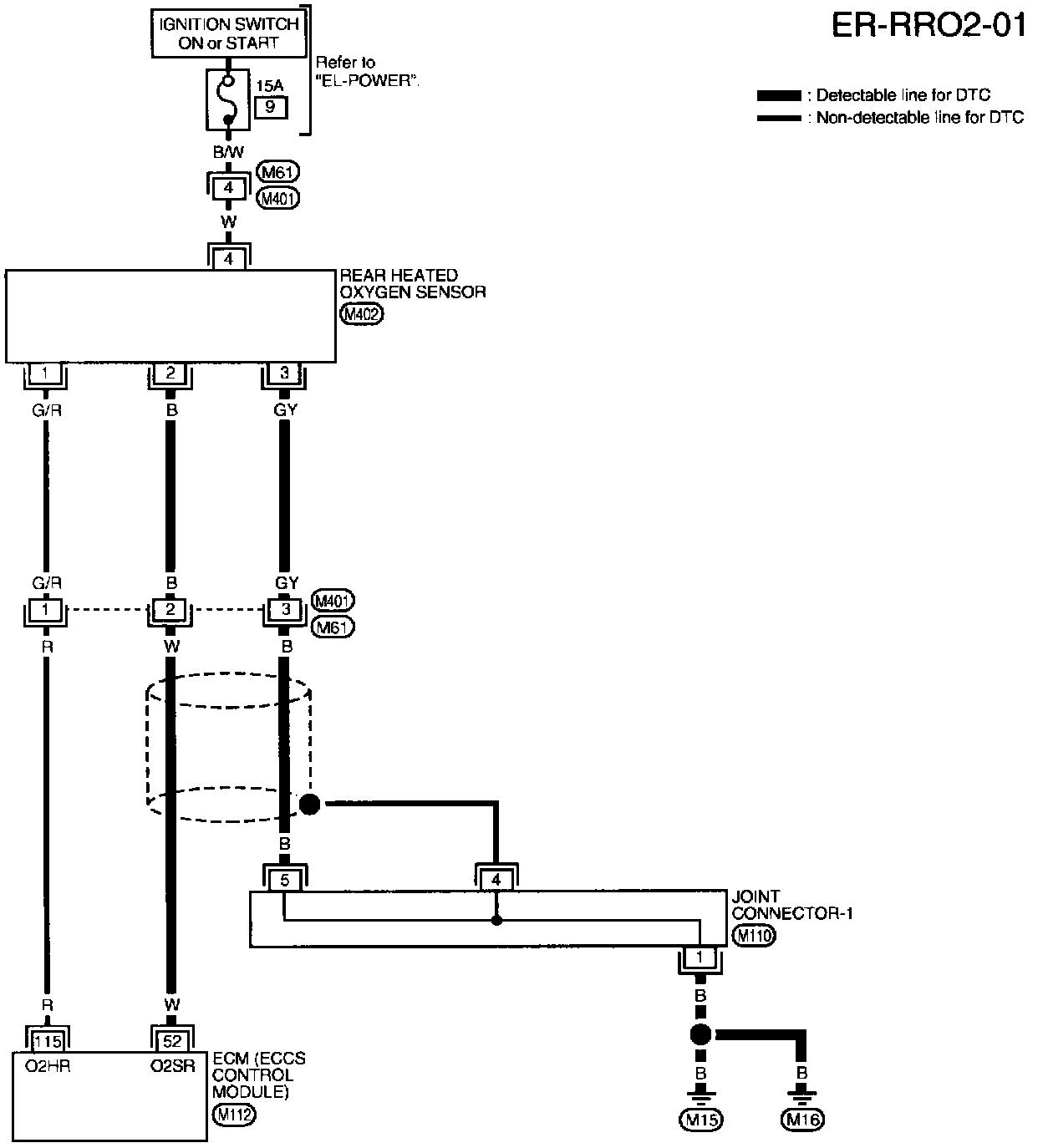

EC-RRO2-01 Rear Heated Oxygen Sensor (Rear HO2S) (DTC P0136):
