D21 Hardbody XE 2WD L4-2389cc 2.4L SOHC MFI (KA24E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Antilock Brakes (ABS)
Antilock Brakes (ABS)

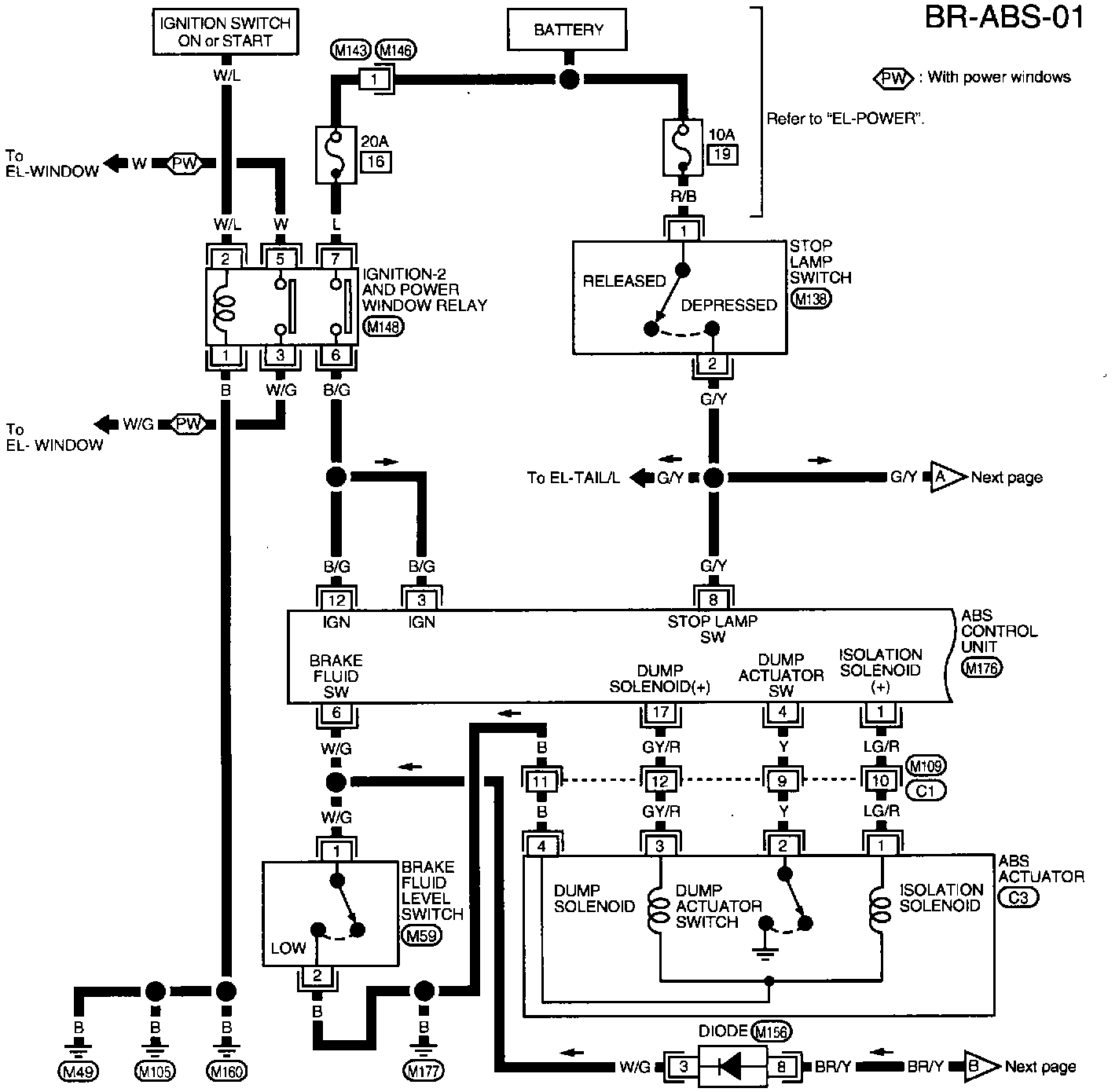

BR-ABS-01 Antilock Brake System (Part 1 Of 2):

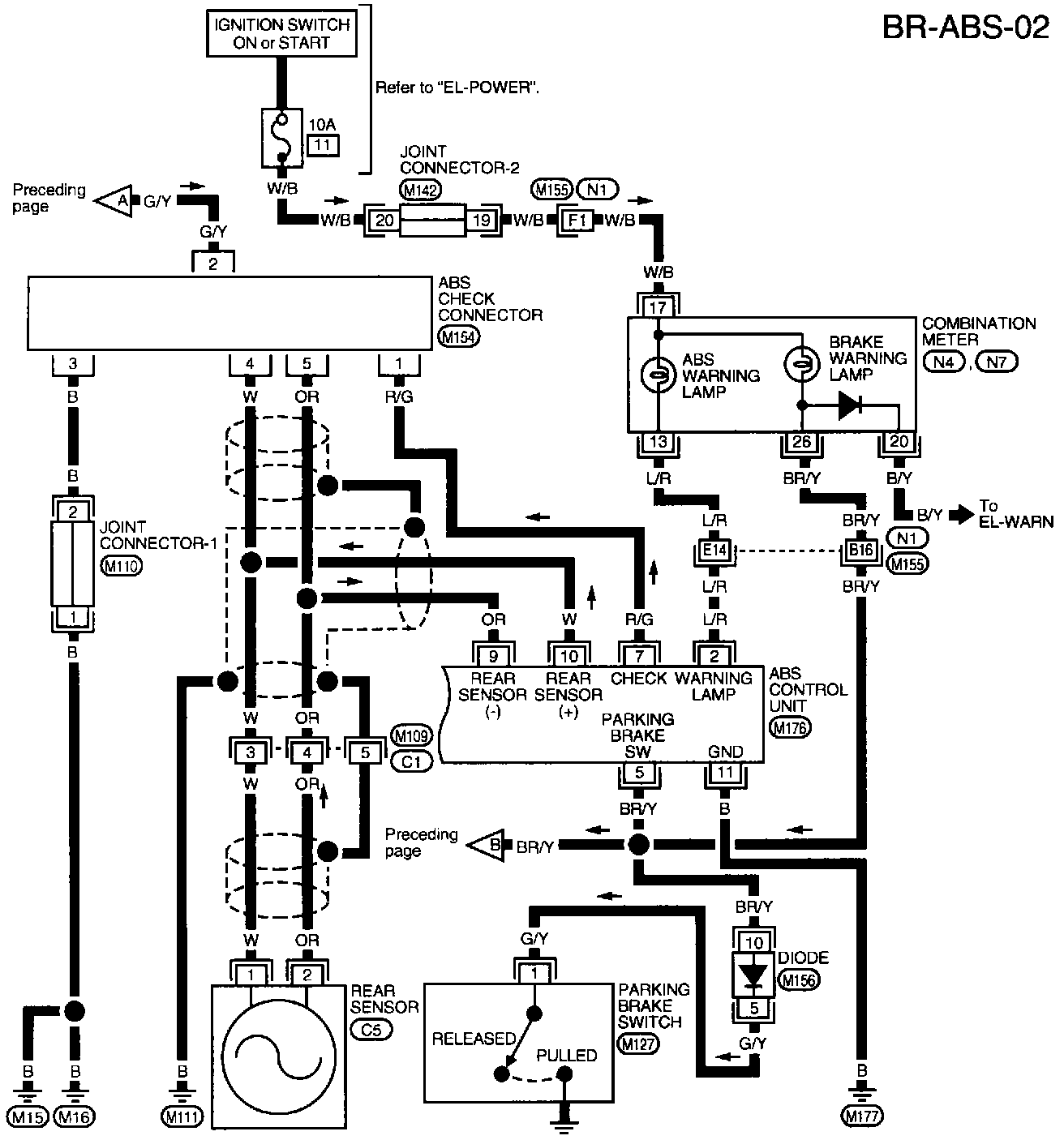

BR-ABS-02 Antilock Brake System (Part 2 Of 2):
