System Specific Connectors

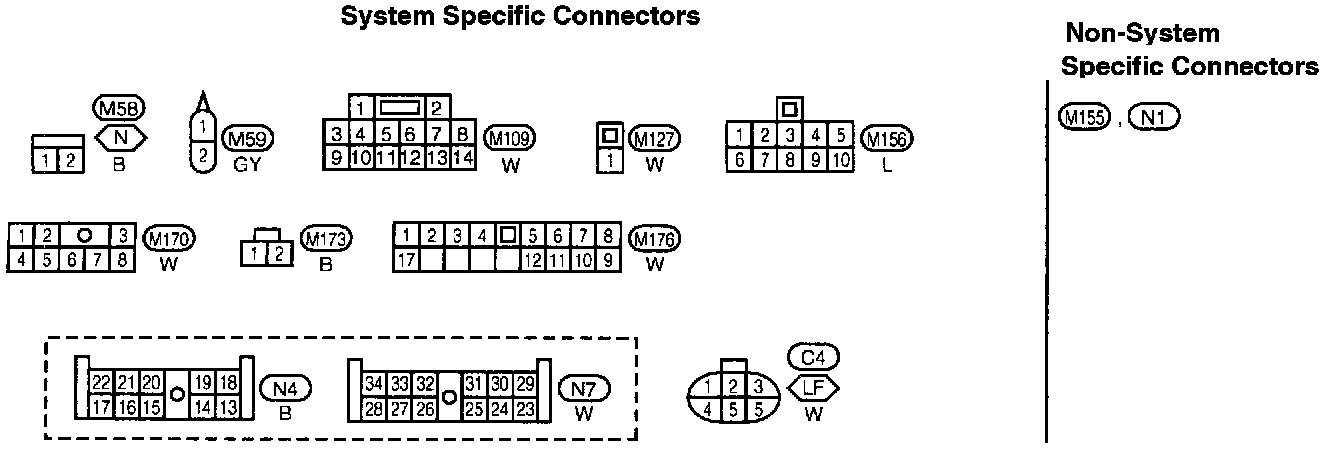

Warning Lamps (Part 1 0f 3):

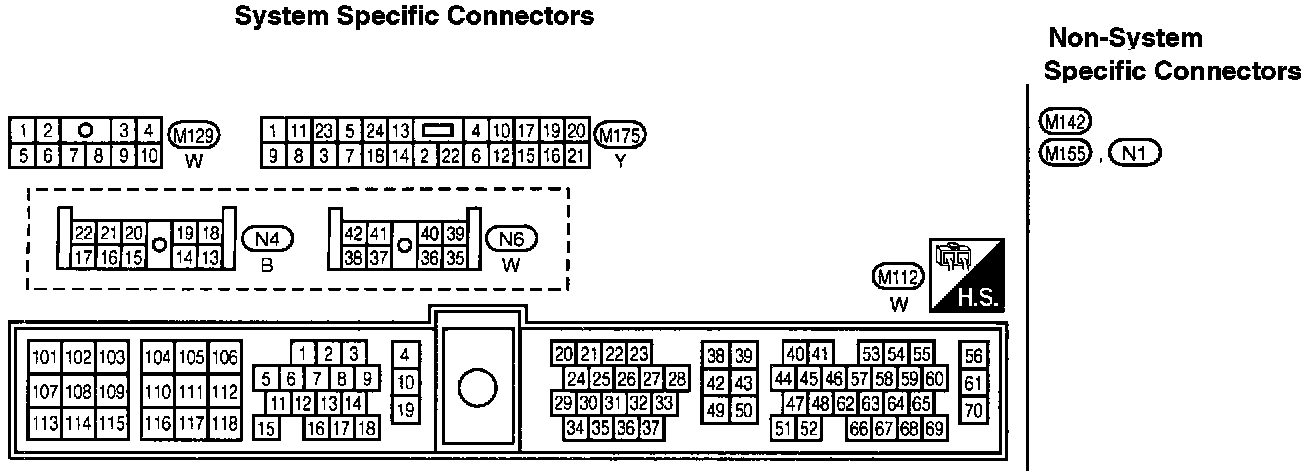

Warning Lamps (Part 2 Of 3):

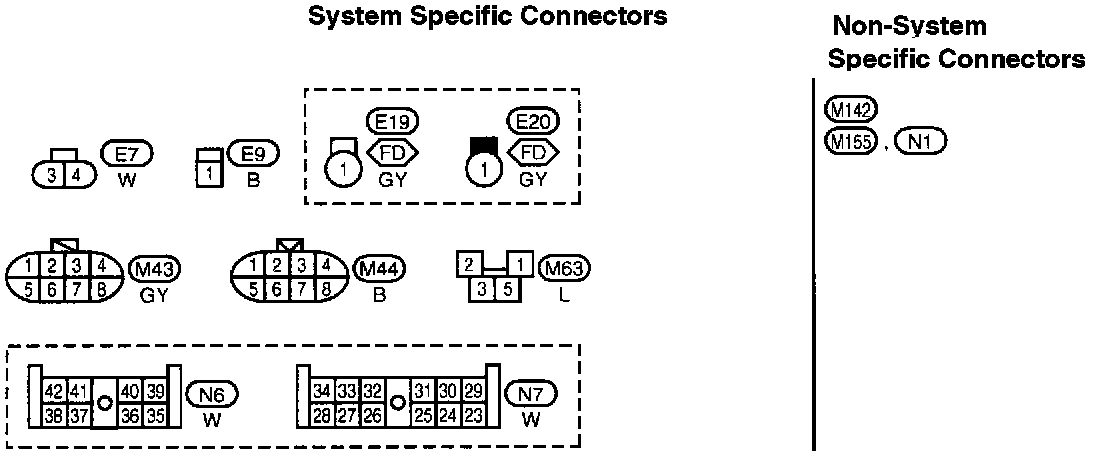

Warning Lamps (Part 3 Of 3):
