Nissan-Datsun
>>
1997
>>
D21 Hardbody XE 2WD L4-2389cc 2.4L SOHC MFI (KA24E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
For Canada
>>
System Specific Connectors
System Specific Connectors

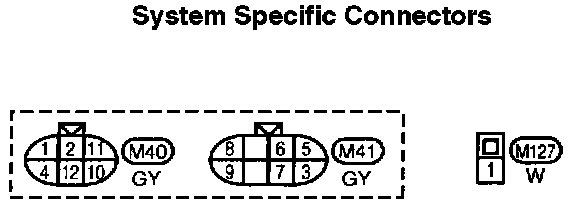

Headlamp (For Canada) (Part 1 Of 3):

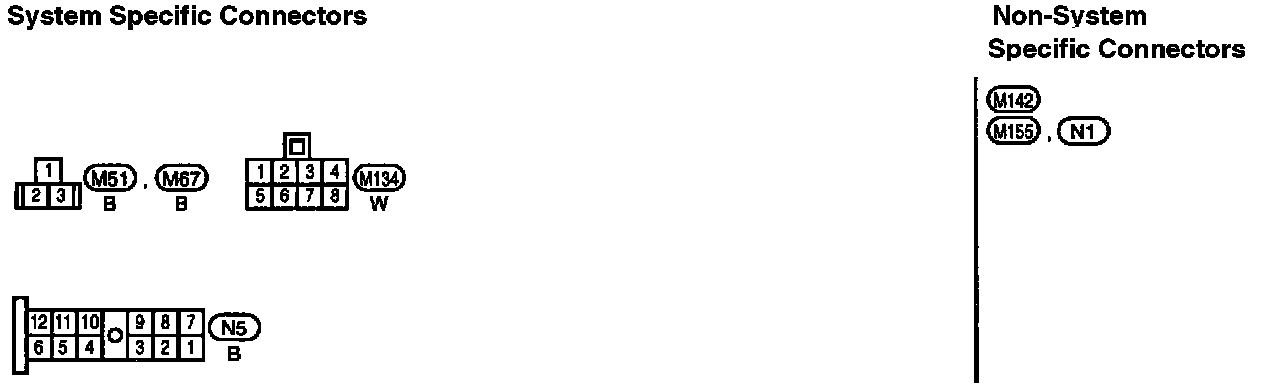

Headlamp (For Canada) (Part 2 Of 3):

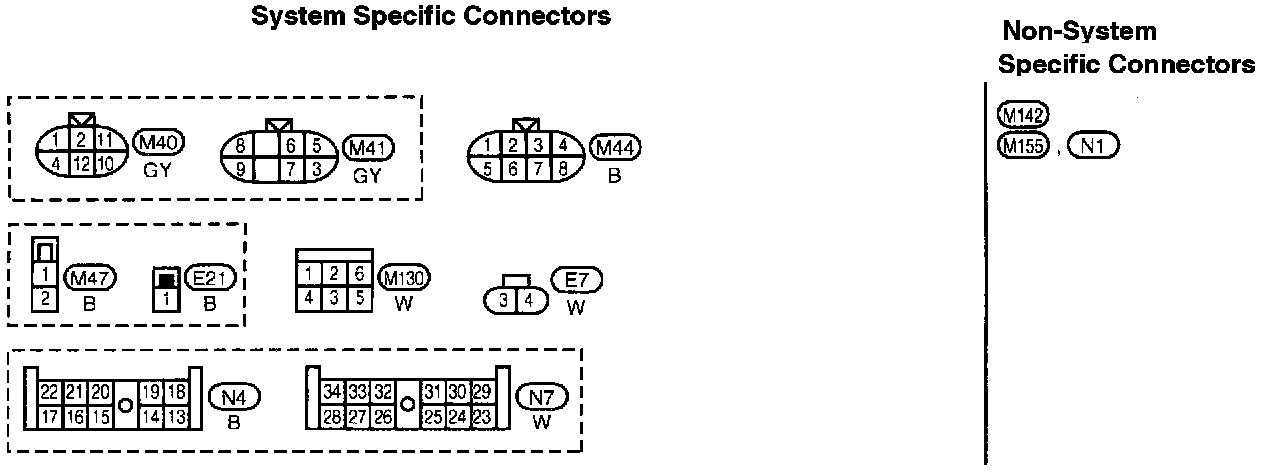

Headlamp (For Canada) (Part 3 Of 3):
