Multiple Switch

Multiple Switch:

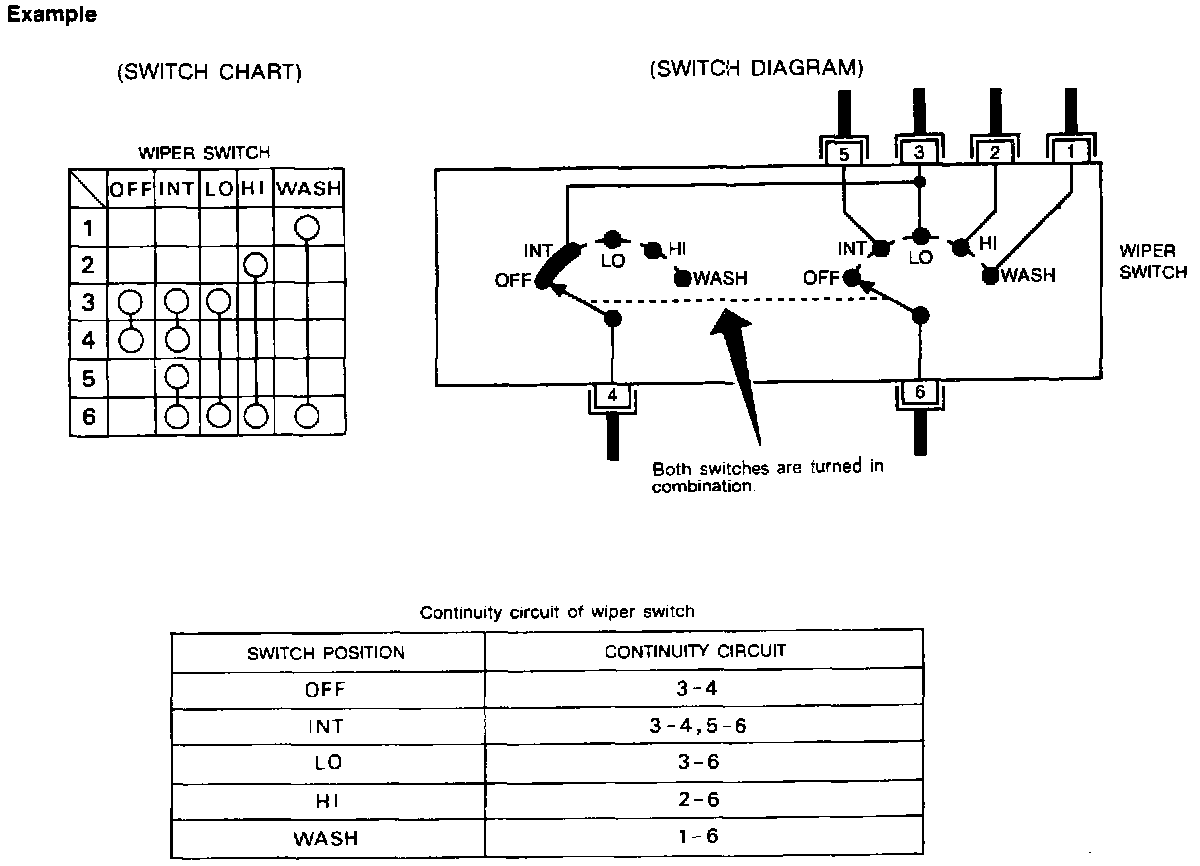

The continuity of multiple switch is described in two ways as shown below.
^ The switch chart is used in schematic diagrams.
^ The switch diagram is used in wiring diagrams.
