Cruise Control: Adjustments

Automatic Speed Control Device (ASCD) Wire Adjustment:

CAUTION:
^ Be careful not to twist ASCD wire when removing it.
^ Do not overly tighten ASCD wire during adjustment. Confirm that accelerator wire is properly adjusted.

Adjust the ASCD wire as follows:

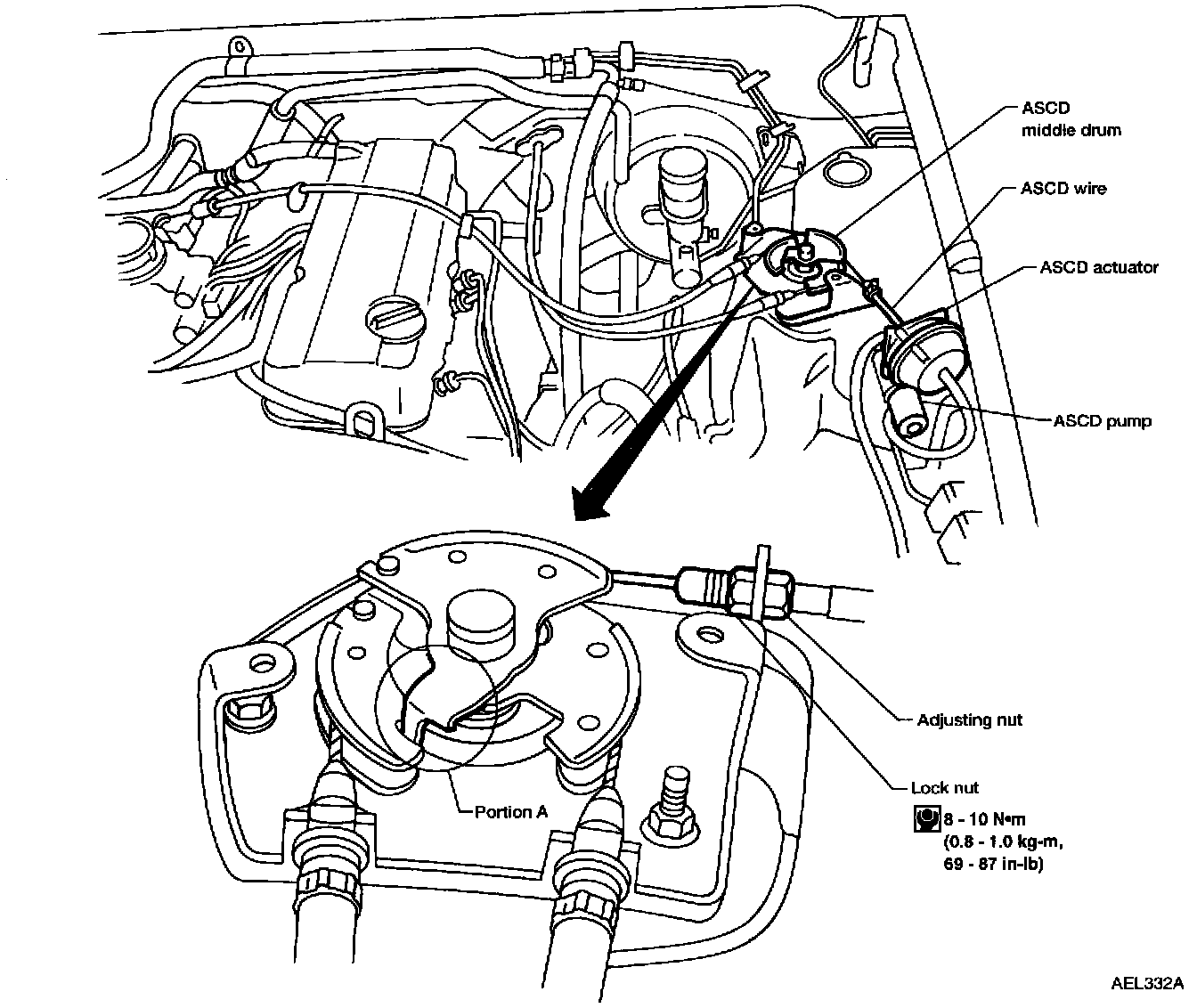

1. Loosen lock nut and tighten adjusting nut until portion A of upper throttle lever comes into contact with lower throttle lever.
2. From that position turn back adjusting nut 0.5 to 1 turn, and secure lock nut.

(This prevents a delay in the operation of the ASCD.)
