Wheel Cylinder: Service and Repair

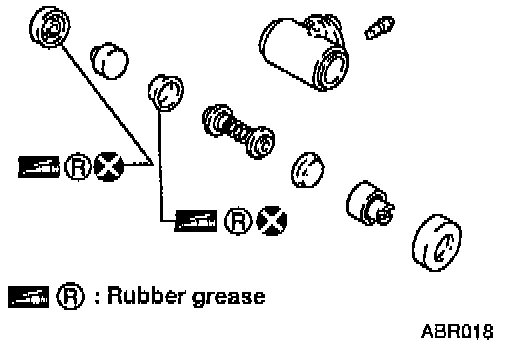

Exploded View Of Wheel Cylinder:

^ Check for wear, damage and loose conditions. Replace if any such condition exists.
^ Check all internal parts for wear, rust and damage. Replace as necessary.
^ Refer to the illustration for service.
