Load Compensator: Service and Repair

LOAD SENSING VALVE

Load Sensing Valve (LSV):

Removal And Installation

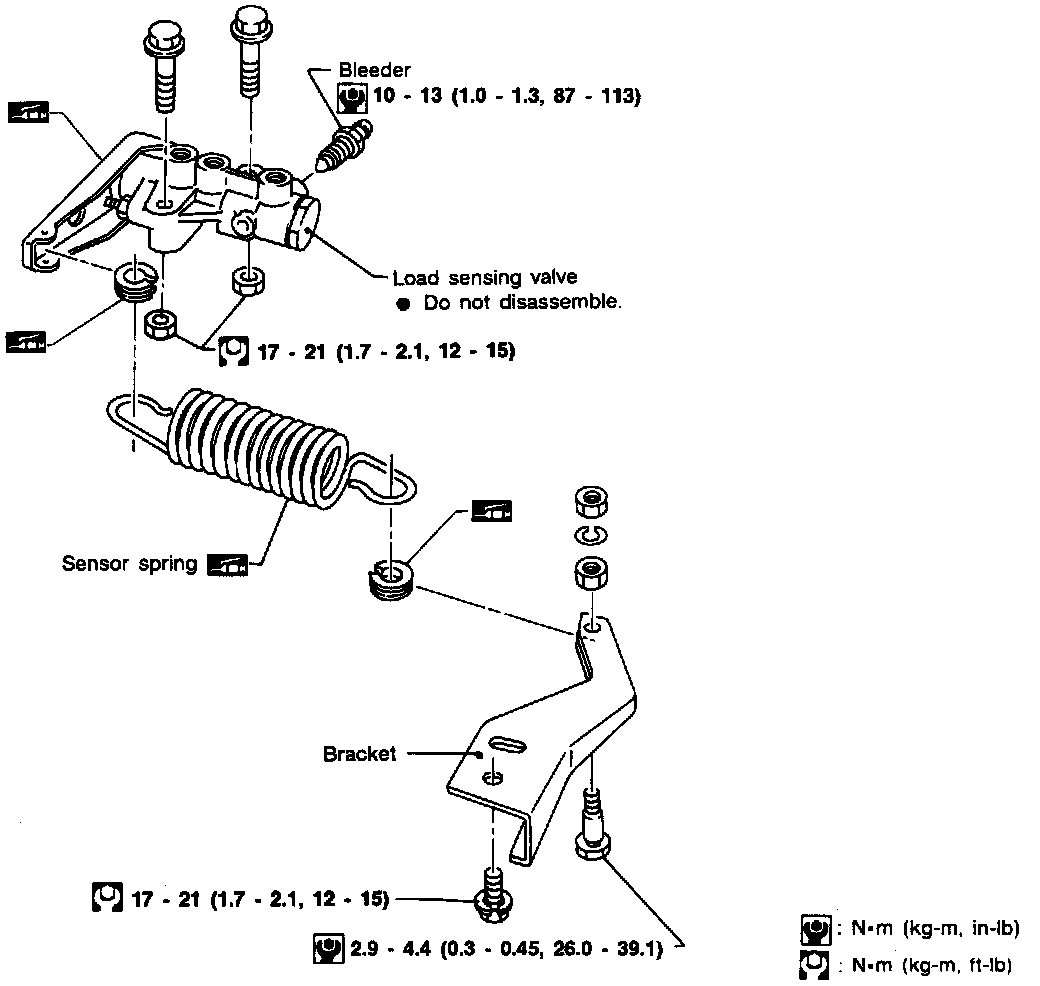

1. Replace damaged load sensing valve linkage as an assembly. Refer to the illustration for removal and installation.
2. When disassemblying, apply multi-purpose grease to linkage.
3. Tighten all flare nuts and bolts to 15 - 18 Nm (11 - 13 ft. lbs.)
4. Bleed brake system. Service and Repair
