Window Antenna Repair Element Check

Element Check:

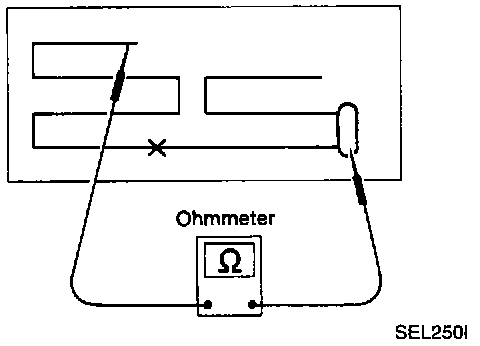

1. Attach probe circuit tester (in ohm range) to each side of antenna terminal.

Element Check:

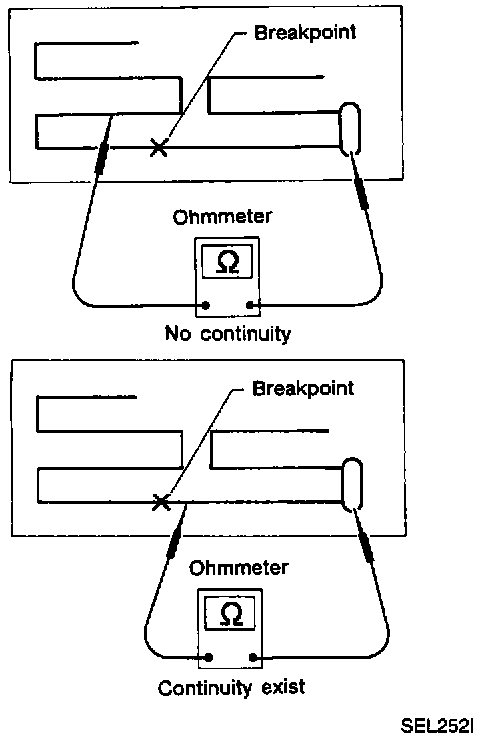

2. If an element is broken, no continuity will exist.

Element Check:

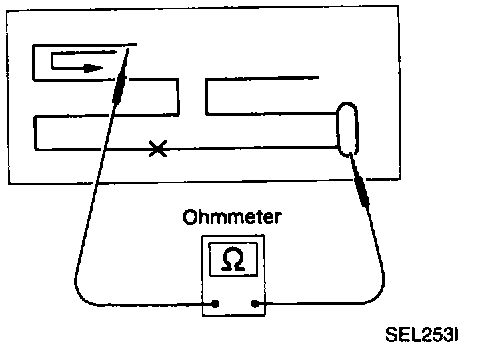

3. To locate a burned out point, move probe along filament. Tester needle swings abruptly at the burned point.
