Model C200

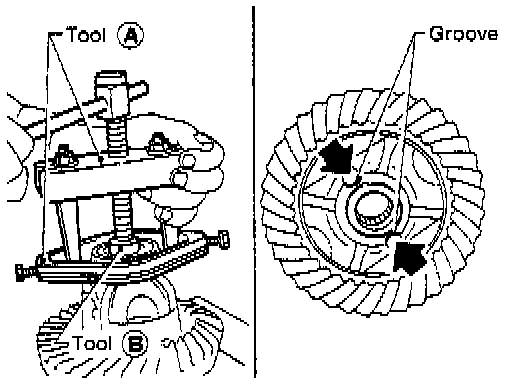

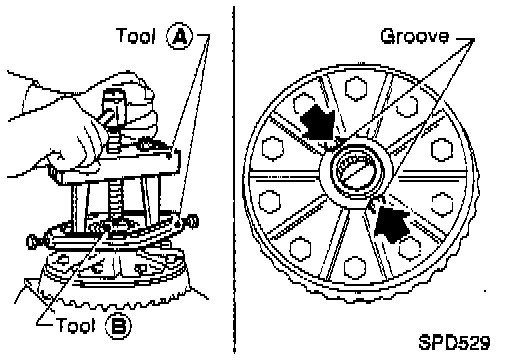

1. Remove side bearing inner cones. To prevent damage to bearing, engage puller jaws in grooves. Use Tool numbers:
(A): ST33051001 (J22888-20)
(B): ST33061000 (J8107-2)

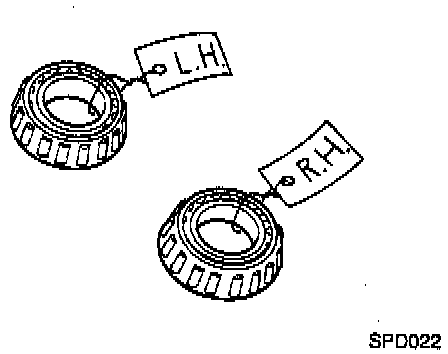

NOTE: Be careful not to confuse the right and left hand parts.

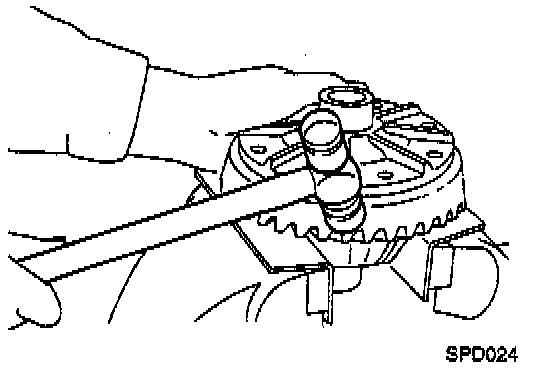

2. Loosen ring gear bolts in a criss-cross fashion.
3. Tap ring gear off the differential case with a soft hammer.
3. Tap evenly all around to keep ring gear from binding.

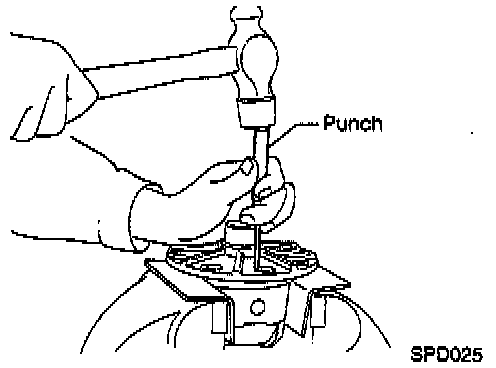

4. Punch off pinion mate shaft lock pin from ring gear side.
- Lock pin is calked at pin hole mouth on differential case.
