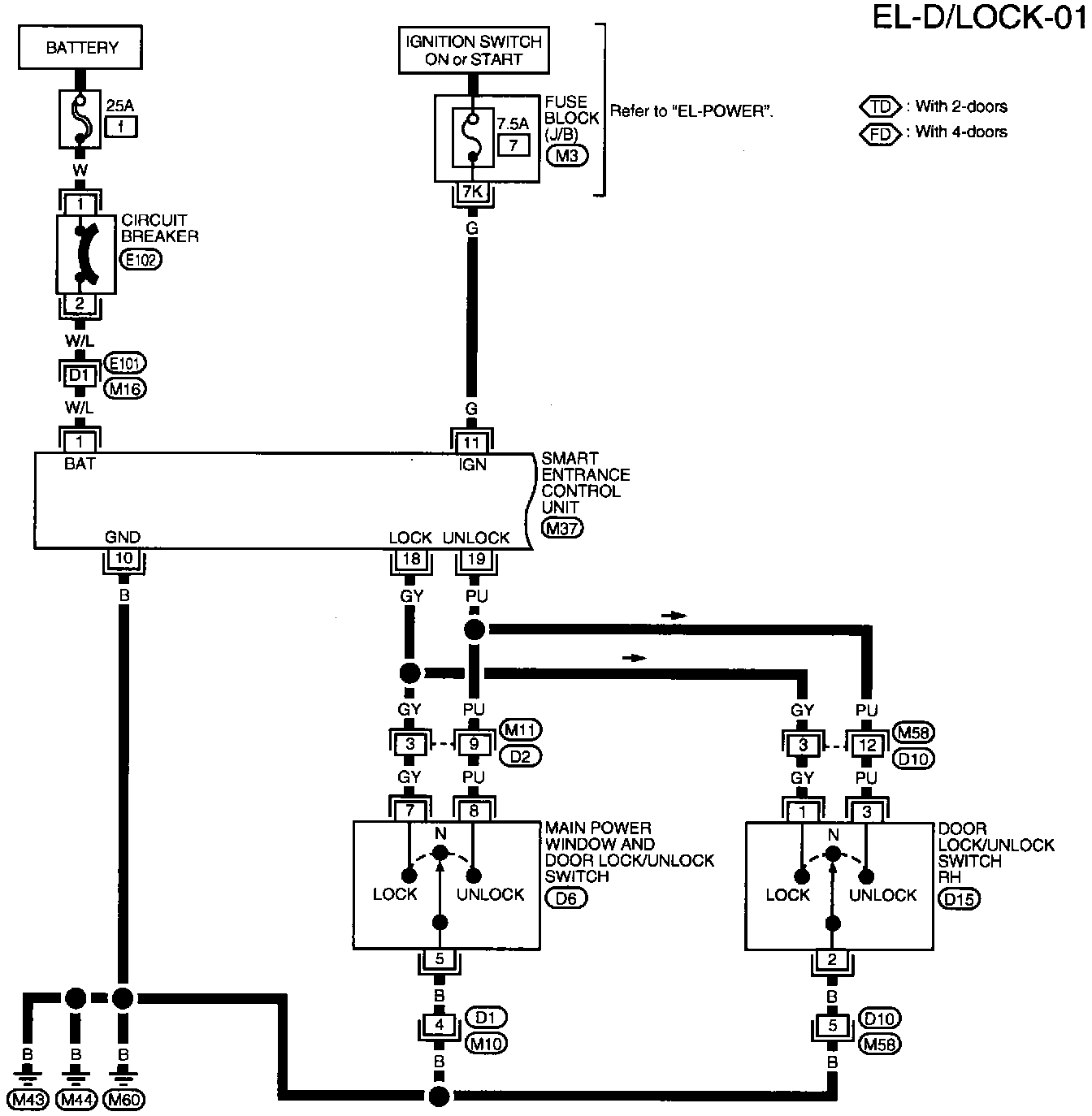

EL-D/LOCK-01 Power Door Lock (Part 1 Of 3):

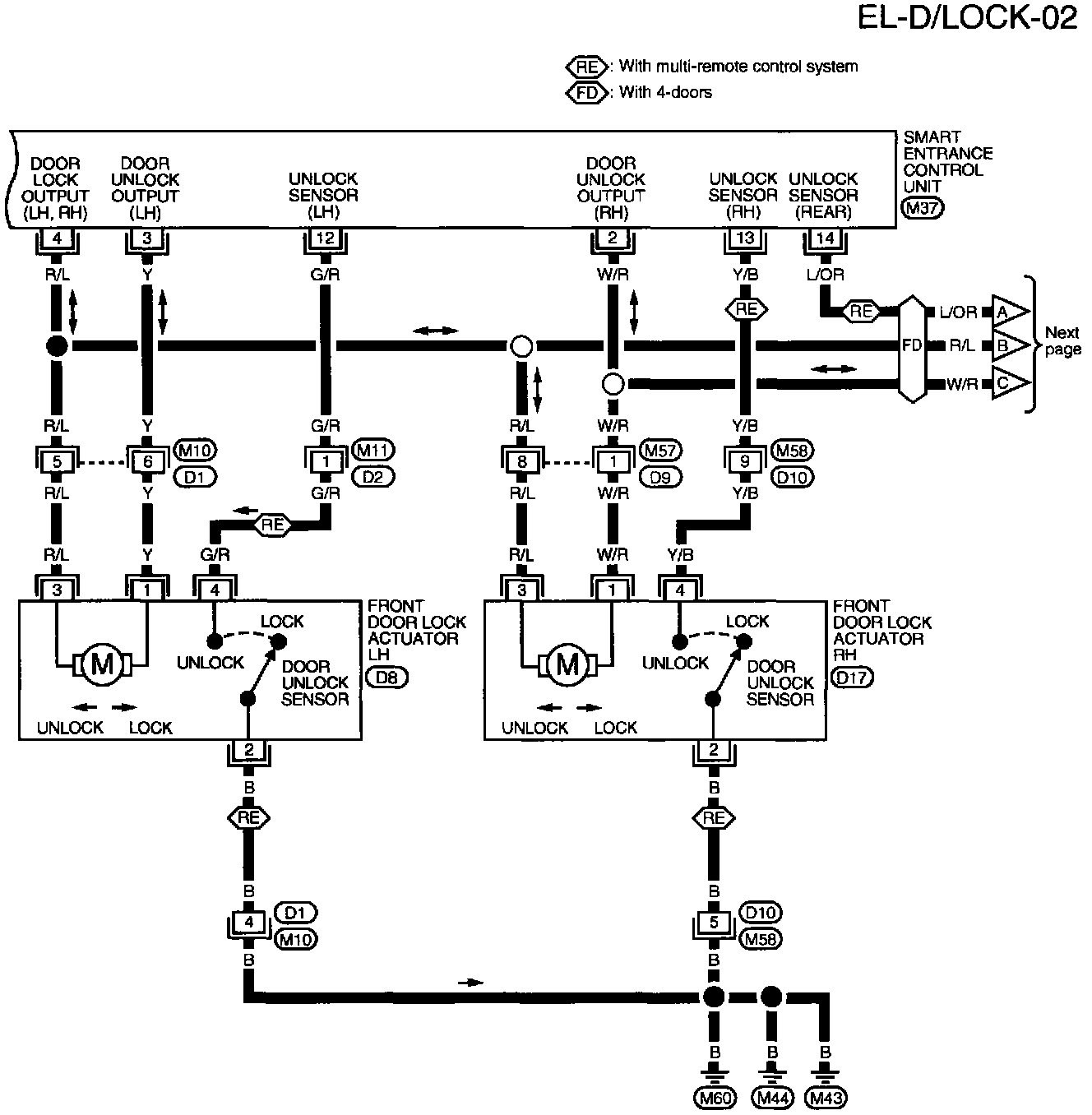

EL-D/LOCK-02 Power Door Lock (Part 2 Of 3):

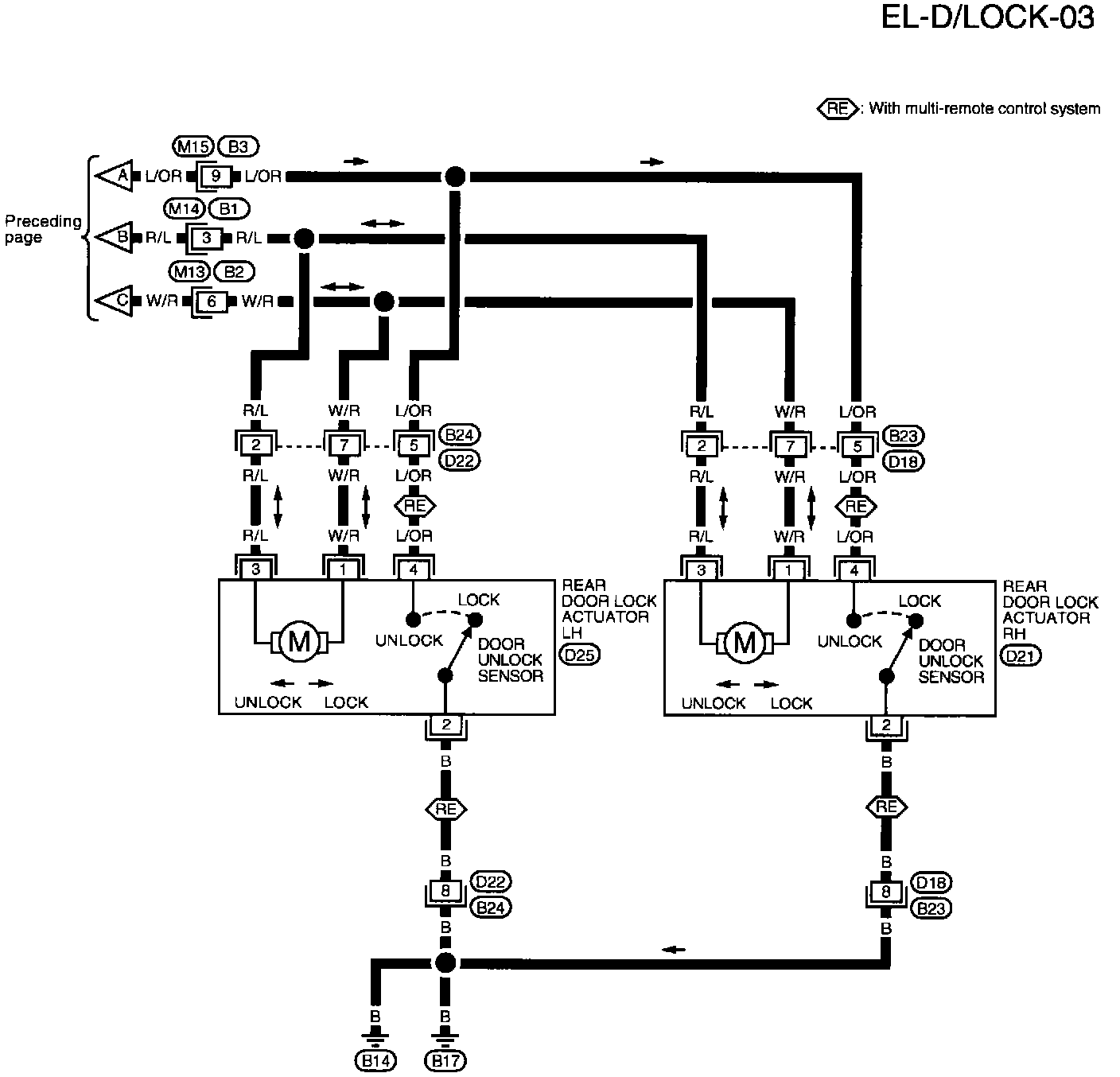

EL-D/LOCK-03 Power Door Lock (Part 3 Of 3):
