Wiper and Washer Activate Individually But Not In Combination

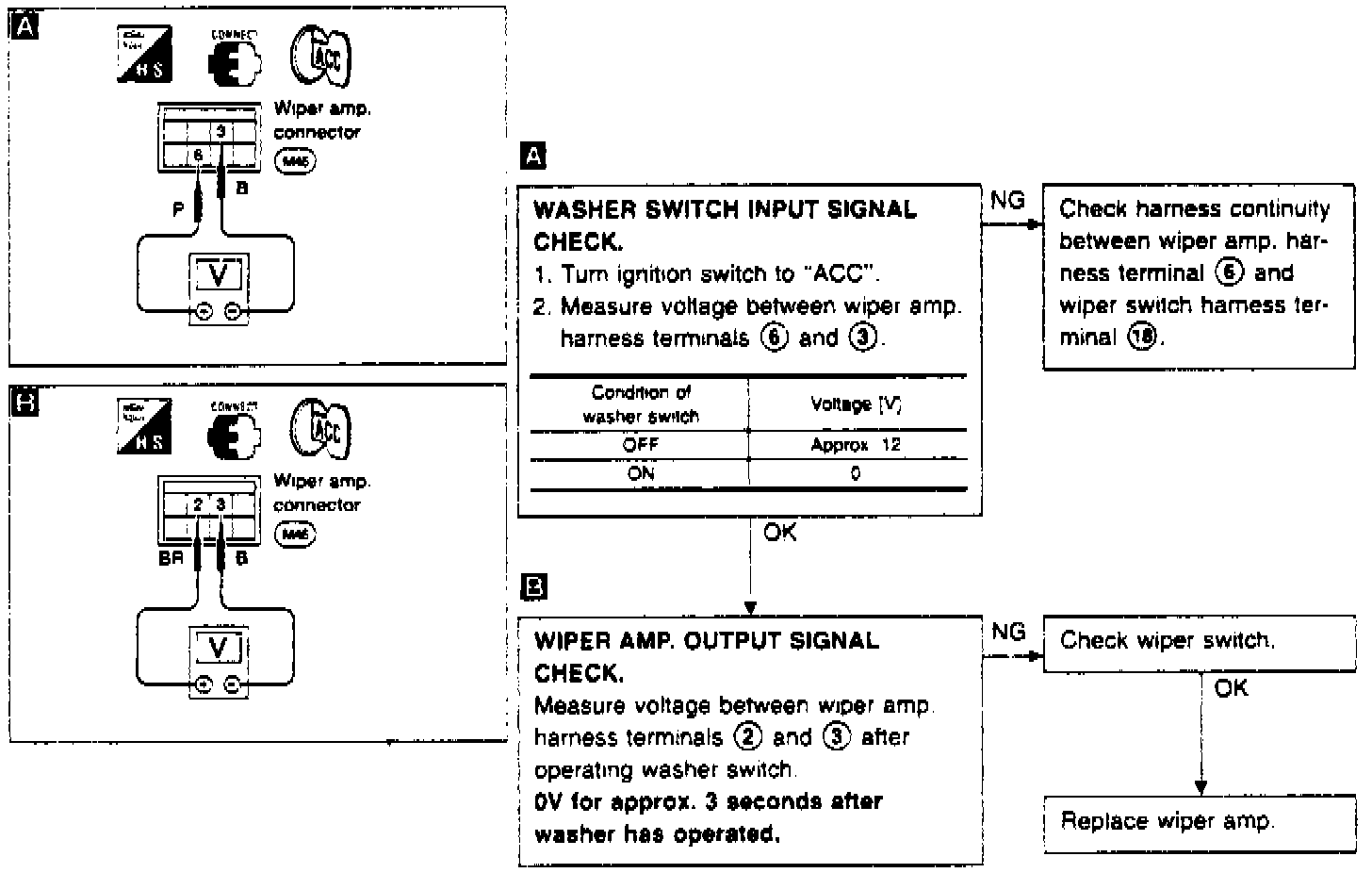

Fig. 12 Diagnostic Procedure 2: Wiper And Washer Operate Individually But Not In Combination:

Refer to Fig. 12 for system diagnosis and testing.
