Intermittent Wiper Does Not Operate
Intermittent Wiper Does Not Operate

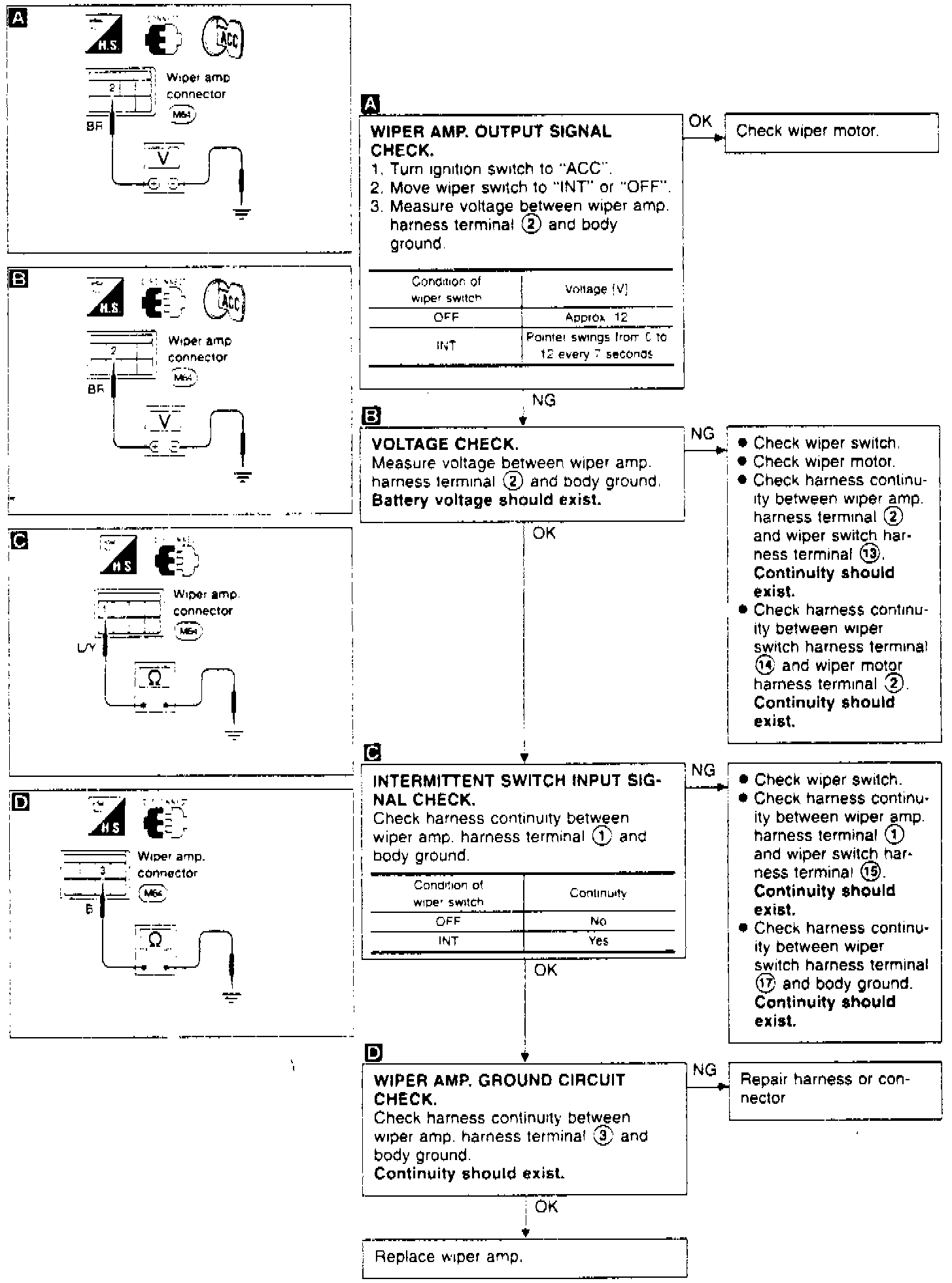

Fig. 11 Diagnostic Procedure 1: Intermittent Wiper And Washer Does Not Operate:
Refer to
Fig. 11
for system diagnosis and testing.
