Preliminary Check (Prior to Road Test)

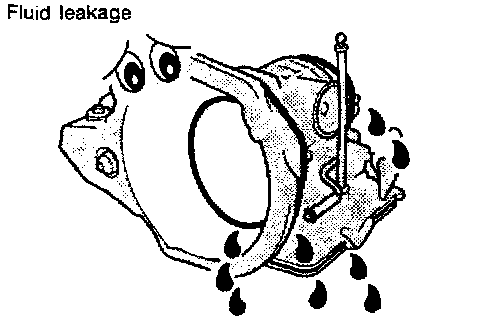

Fluid leakage check



1. Clean area suspected of leaking, - for example, mating surface of converter housing and transmission case.
2. Start engine, apply foot brake, place selector lever in "D" position and wait a few minutes.
3. Stop engine.
4. Check for fresh leakage.

Fluid level check

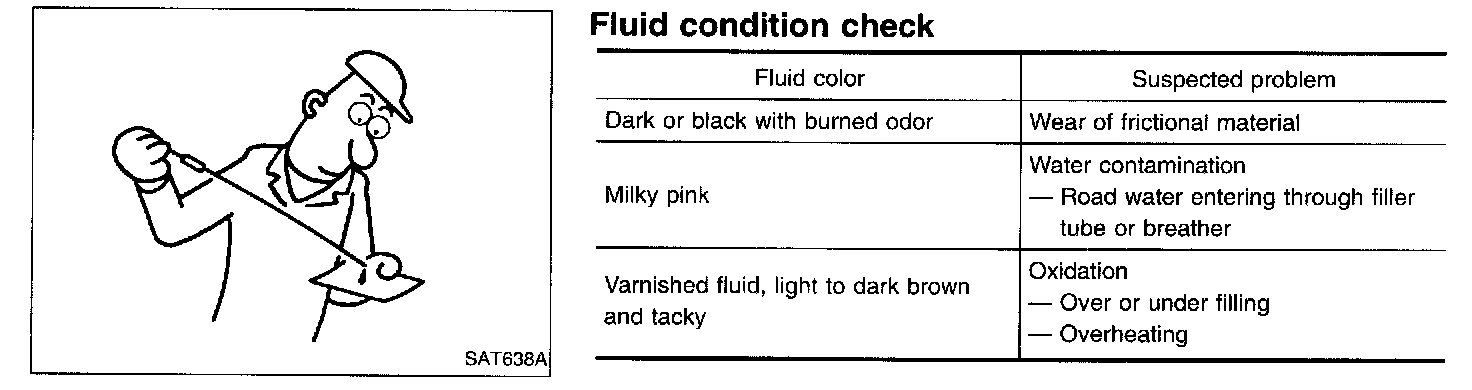

Fluid Condition Check:
