Removal

CAUTION: Before separating transaxle from engine, remove the crank- shaft position sensor (OBD) from transaxle.
Be careful not to damage sensor edge.

1. Remove battery negative terminal.
2. Remove air cleaner housing.

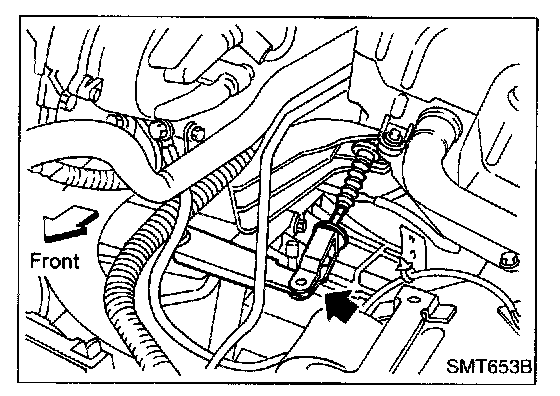

3. Disconnect clutch control cable.
4. Disconnect back-up lamp switch, neutral position switch, vehicle speed sensor and ground harness connectors.
5. Remove starter motor from transaxle.
6. Remove vehicle speed sensor from transaxle.
7. Remove crankshaft position sensor (OBD) from transaxle.

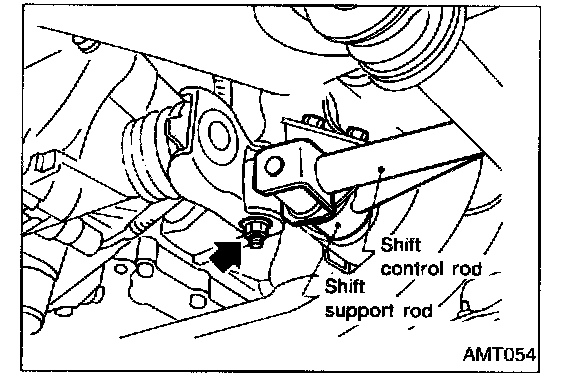

8. Remove shift control rod from transaxle.
9. Drain gear oil from transaxle.
10. Remove drive shafts from transaxle.
11. Remove LH mounts.
12. Support the transaxle with a jack.
13. Remove bolts securing transaxle.
14. Lower transaxle.
