Disassembly and Assembly

DISASSEMBLY

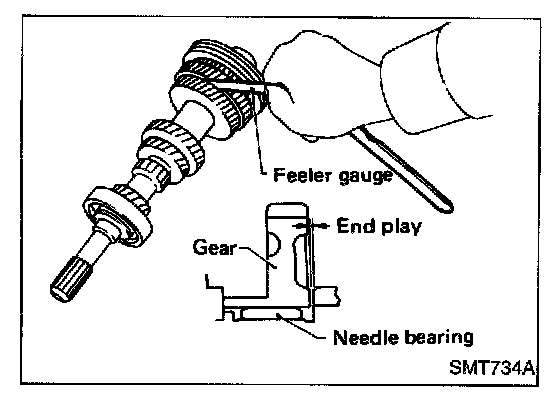

1. Before disassembly, check 5th input gear end play.

Gear end play: 0.18 - 0.31 mm (0.0071 - 0.0122 in)

- If not within specification, disassemble and check contact surface of gear, shaft and hub. Then check clearance of snap ring groove. Refer to "ASSEMBLY" below.

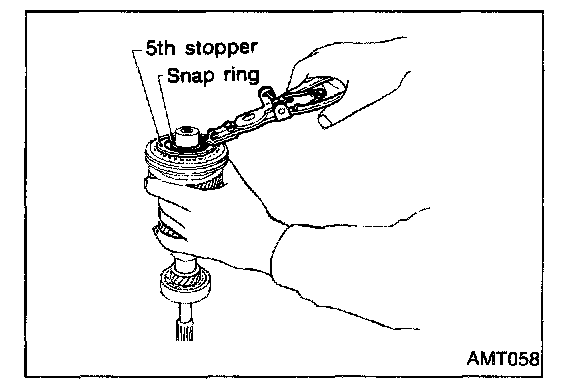

2. Remove snap ring and 5th stopper.

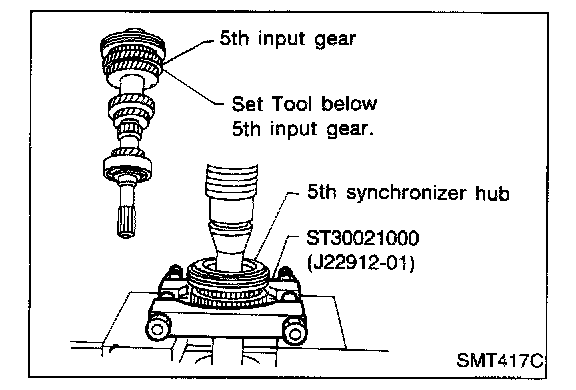

3. Remove 5th synchronizer, 5th input gear and 5th gear needle bearing with tool.




4. Remove snap ring of input shaft front bearing and spacer.

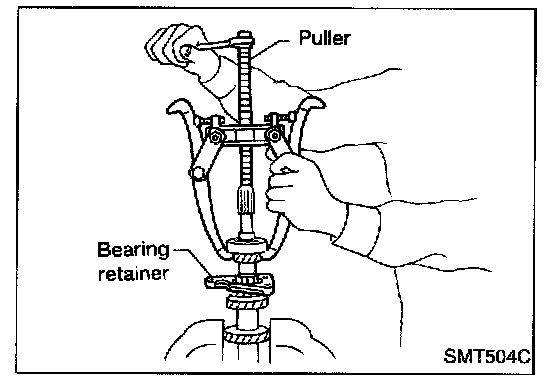

5. Pull out input shaft front bearing.
6. Remove bearing retainer.

ASSEMBLY

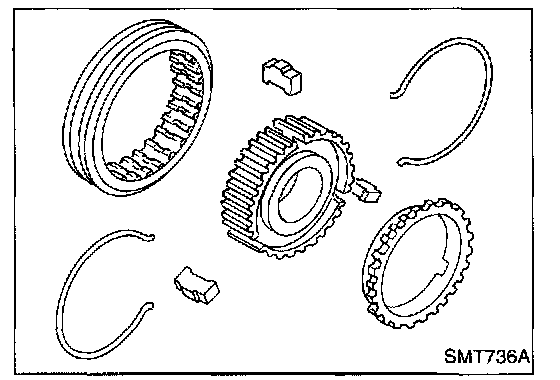

1. Assemble 5th synchronizer.

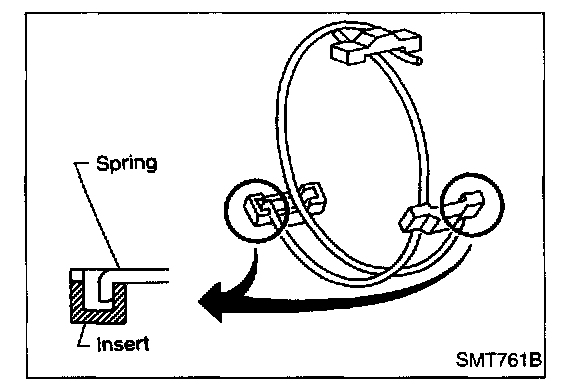

Note: Be careful not to hook front and rear ends of spread spring to the same insert.

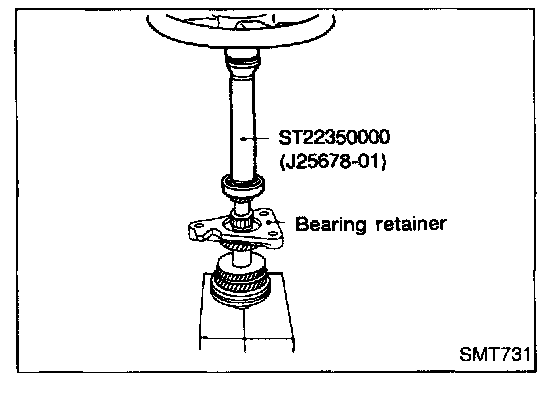

2. Install bearing retainer.
3. Press on input shaft front bearing.
4. Install spacer.

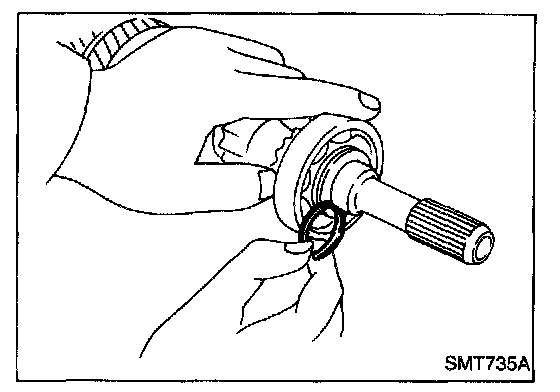

5. Select and install snap ring that gives the proper clearance of input shaft groove.

Allowable clearance of groove: 0 - 0.1 mm (0 - 0.004 in)
Snap ring of input shaft front bearing: [1][2]Mechanical Specifications

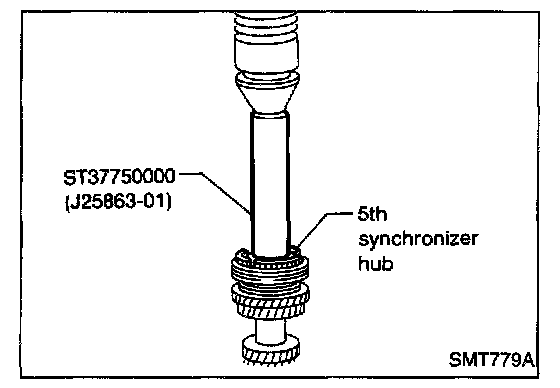

6. Install 5th gear needle bearing, 5th input gear, 5th synchronizer and 5th stopper with tool.
7. Measure gear end play as the final check. Refer to "DISASSEMBLY" above.




8. Select and install snap ring that gives the proper clearance of input shaft groove.

Allowable clearance of groove: 0 - 0.1 mm (0 - 0.004 in)
Snap ring of 5th synchronizer: [1][2]Mechanical Specifications
