Clutch: Service and Repair

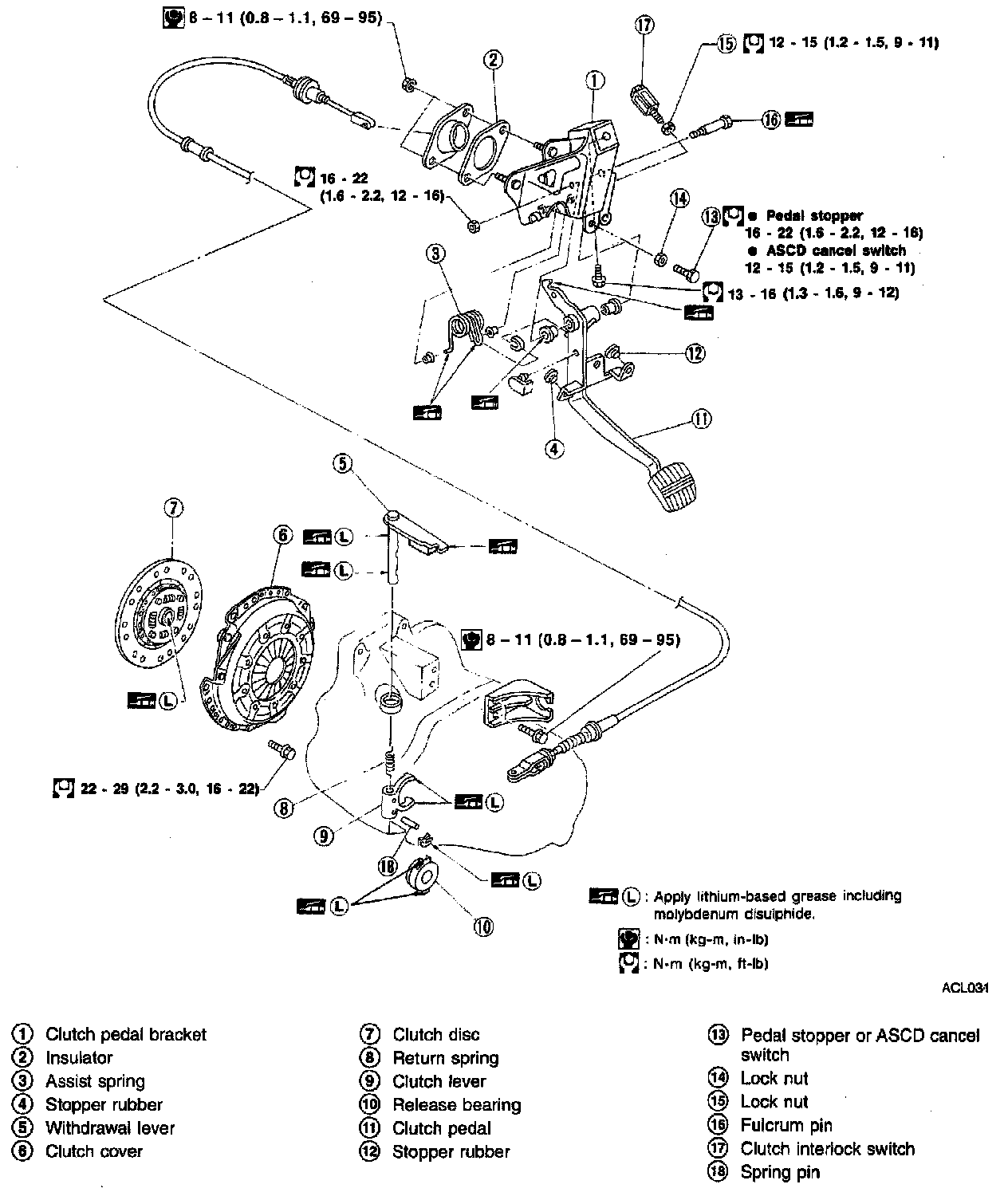

Clutch System:






1. Remove transmission as outlined in Manual Transmission/Transaxle - Service and Repair. Service and Repair
2. Insert a dummy shaft into the clutch disc hub.
3. Loosen clutch cover attaching bolts alternately.
4. Remove clutch disc and cover assembly.
5. Remove release bearing.
6. Reverse procedure to install.
