Governor Valve

- RL4F03A only -

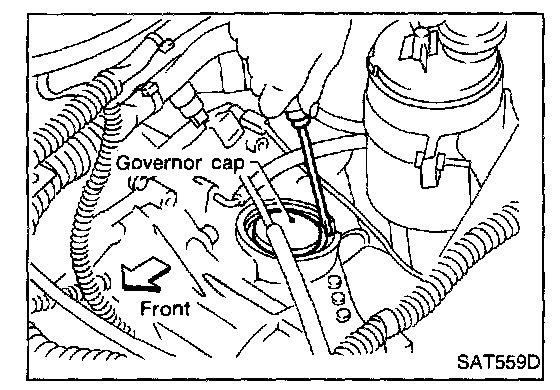

1. Remove governor cap snap ring.
2. Remove governor cap.

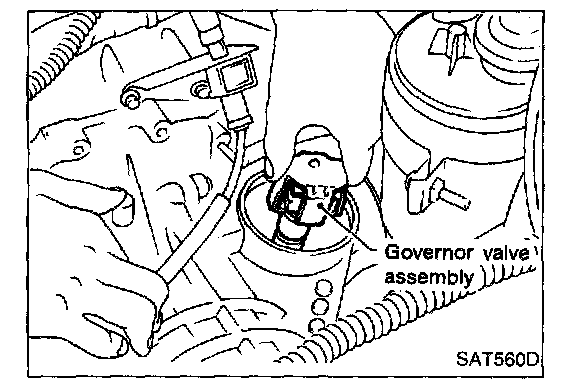

3. Remove governor valve assembly from transaxle.
4. Check governor valve assembly for damage or wear.
