Differential Side Oil Seal Replacement

1. Remove drive shaft assemblies.

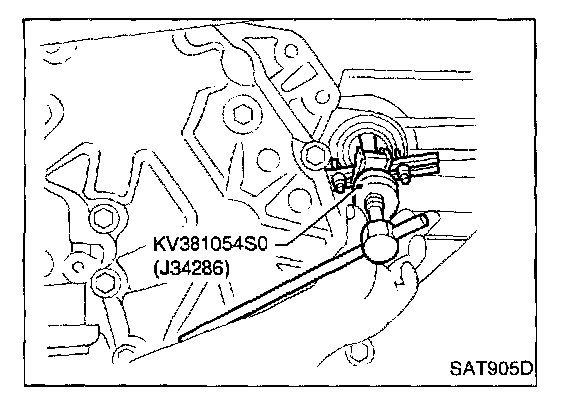

2. Remove oil seals.

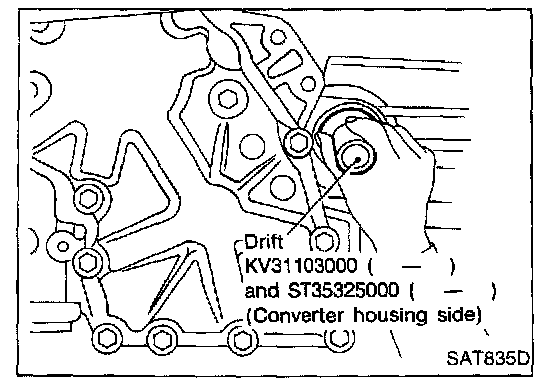

3. Install oil seals.
- Apply ATF to oil seal surface before installing.

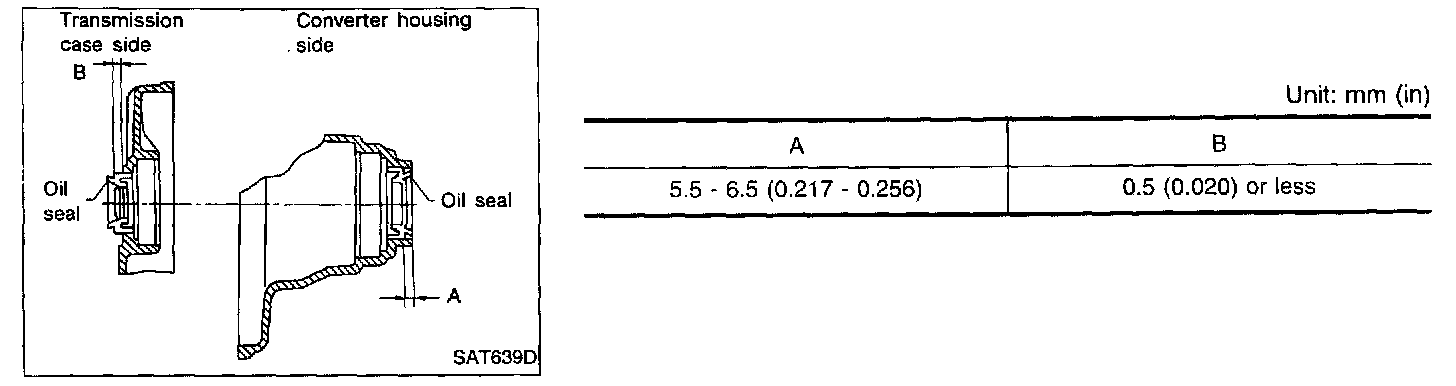

- Install oil seals so that dimensions "A" and "B" are within specifications.

4. Reinstall any part removed.
