Assembly 1

- RE4F03V only -

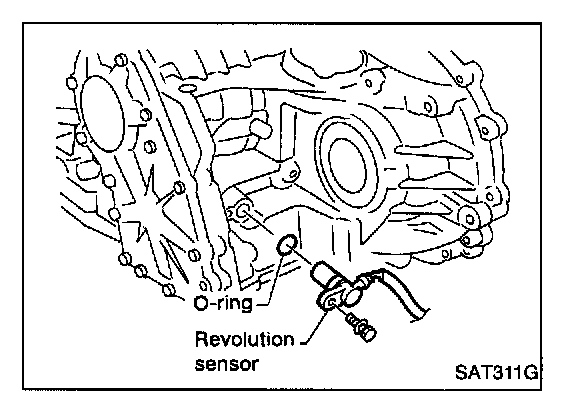

1. Install revolution sensor onto transmission case.
Always use new sealing parts.

- RL4F03A & RE4F03V -

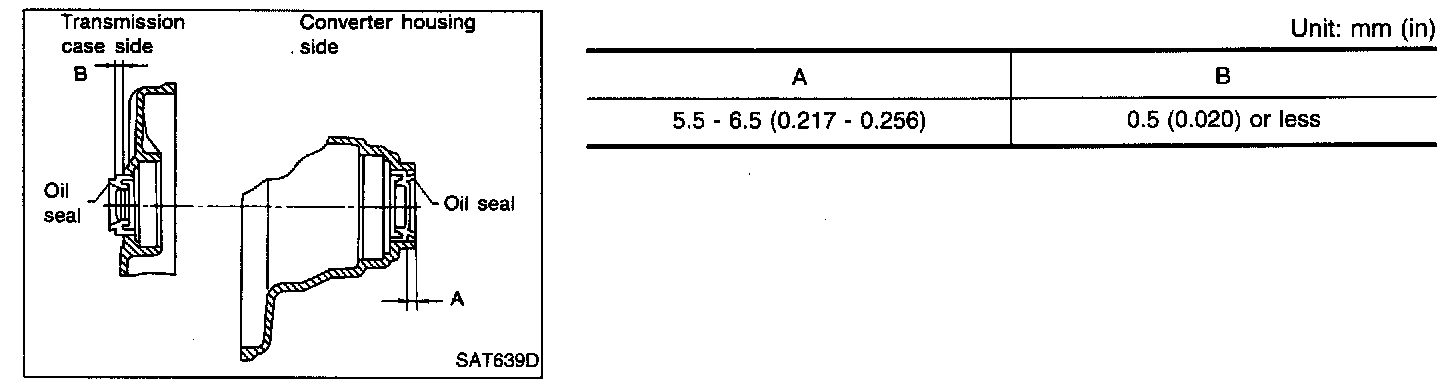

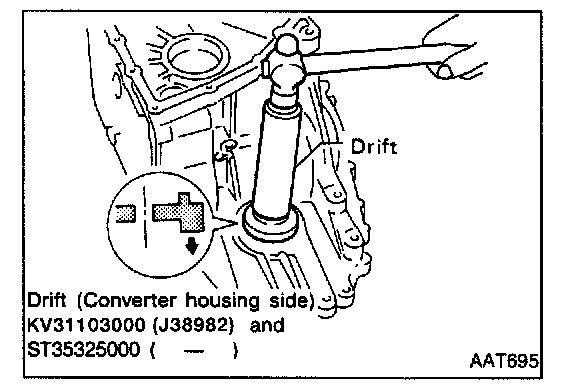

2. Install differential side oil seals on transmission case and converter housing, so that "A" and "B" are within specifications.

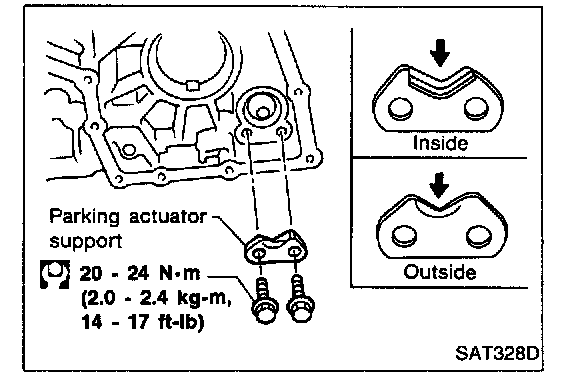

3. Install parking actuator support to transmission case.
- Pay attention to direction of parking actuator support.

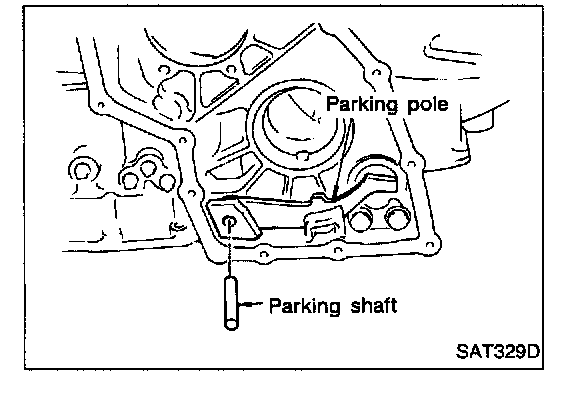

4. Install parking pawl on transmission case and fix it with parking shaft.

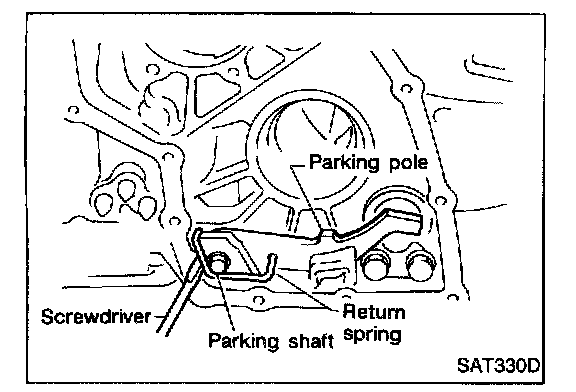

5. Install return spring.
