Electrical Diagrams

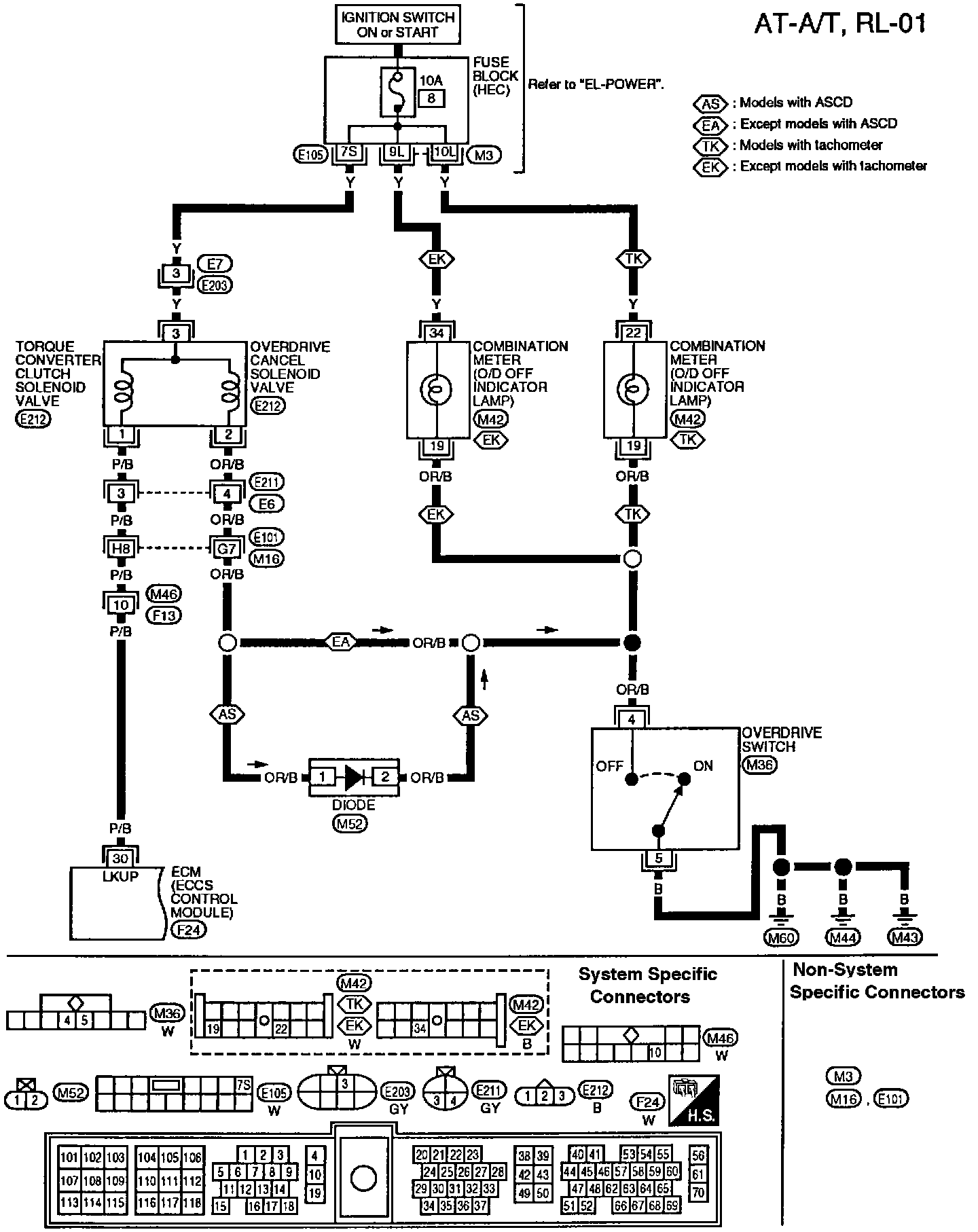

AT-A/T, RL-01 Automatic Transmission (Part 1 Of 2):

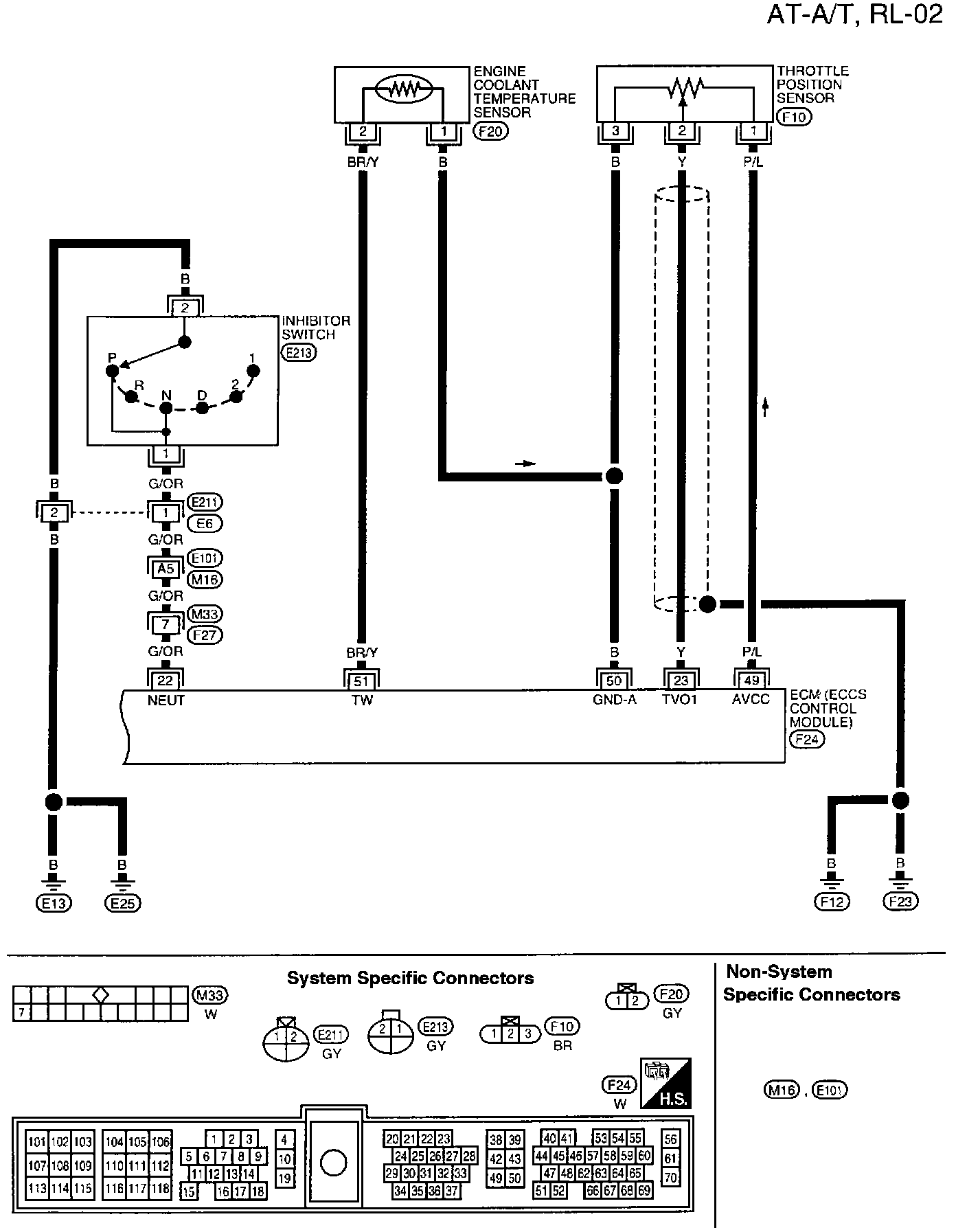

AT-A/T, RL-02 Automatic Transmission (Part 2 Of 2):
