Home >> Nissan-Datsun >> 1996 >> 200SX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Exploded Views >> S114-802A

S114-802A

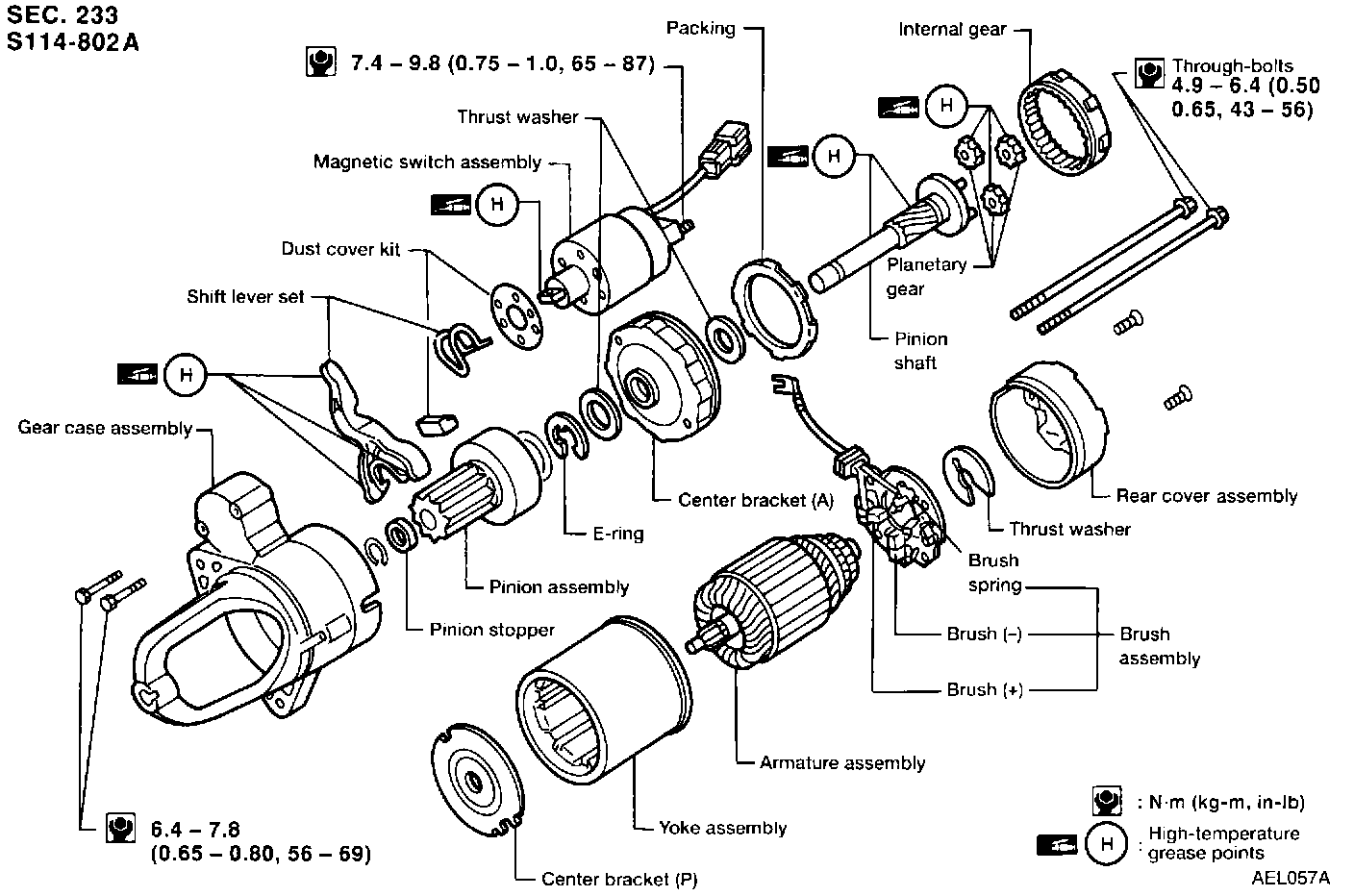

Starter Exploded View S114-802-A:
