Nissan-Datsun
>>
1996
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
A/T Model Wiring Diagram
A/T Model Wiring Diagram

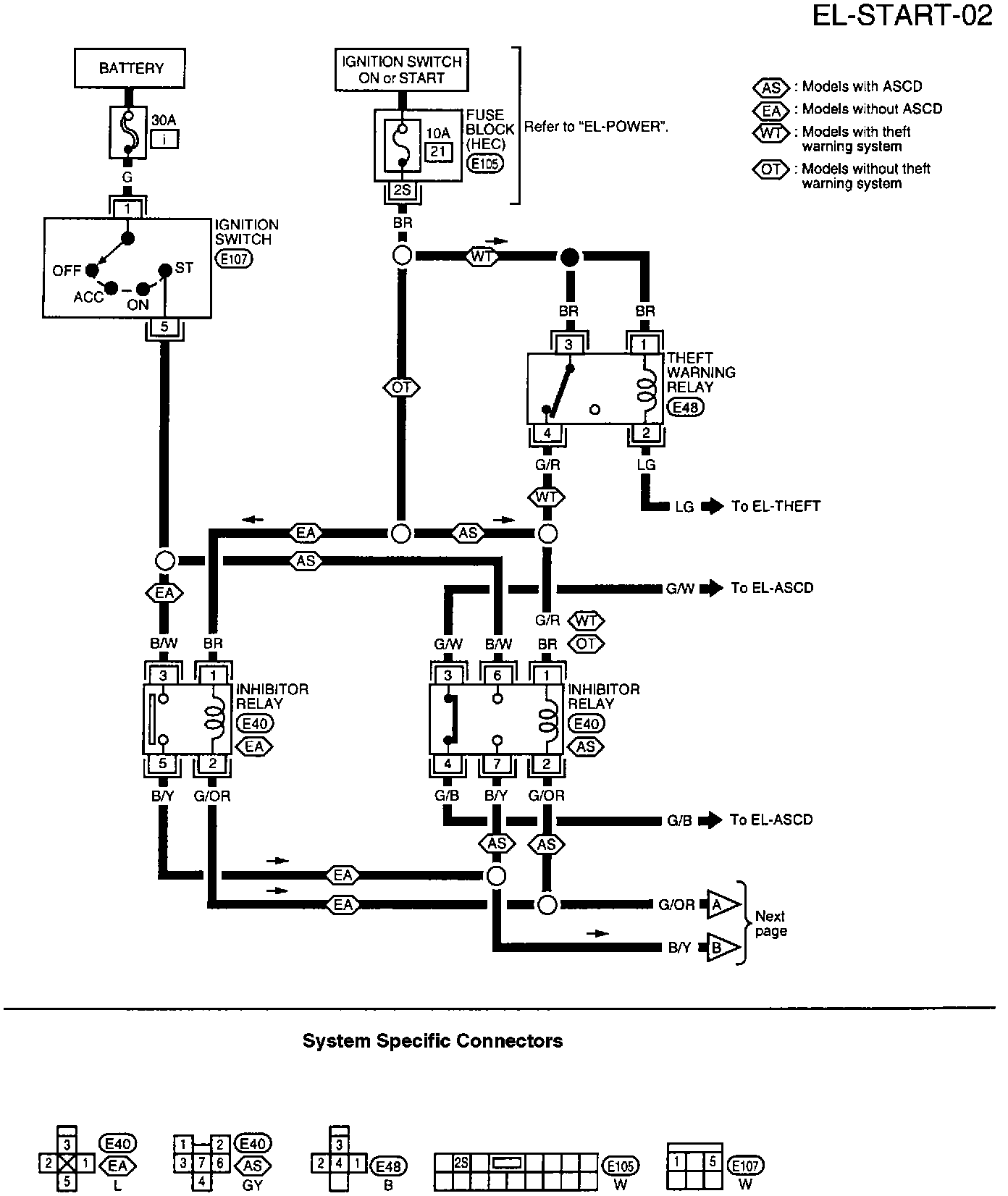

EL-START-02 Starting System (A/T Models) (Part 1 Of 2):

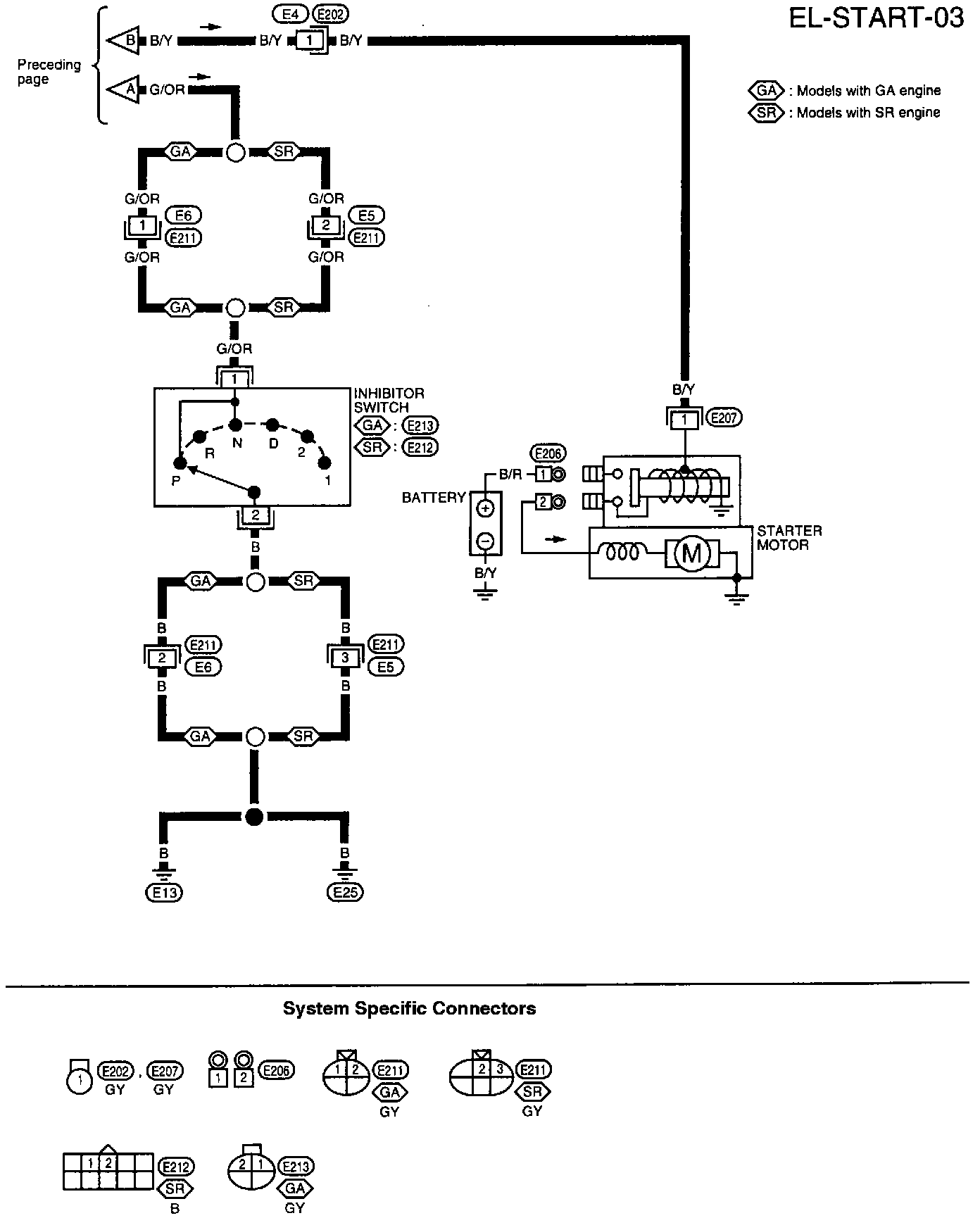

EL-START-03 Starting System (A/T Models) (Part 2 Of 2):
